Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
CABLINE® V
Contact Us
Video
Video

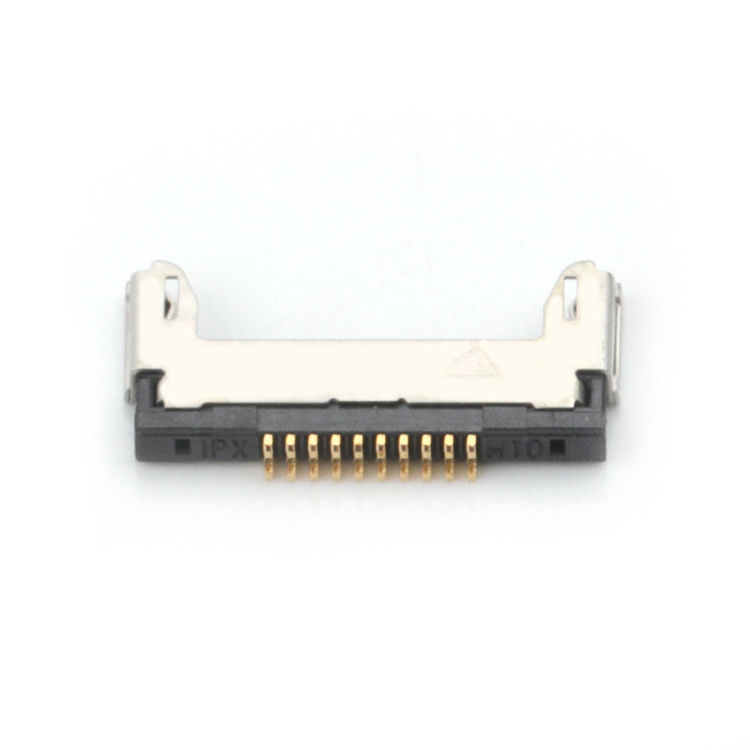

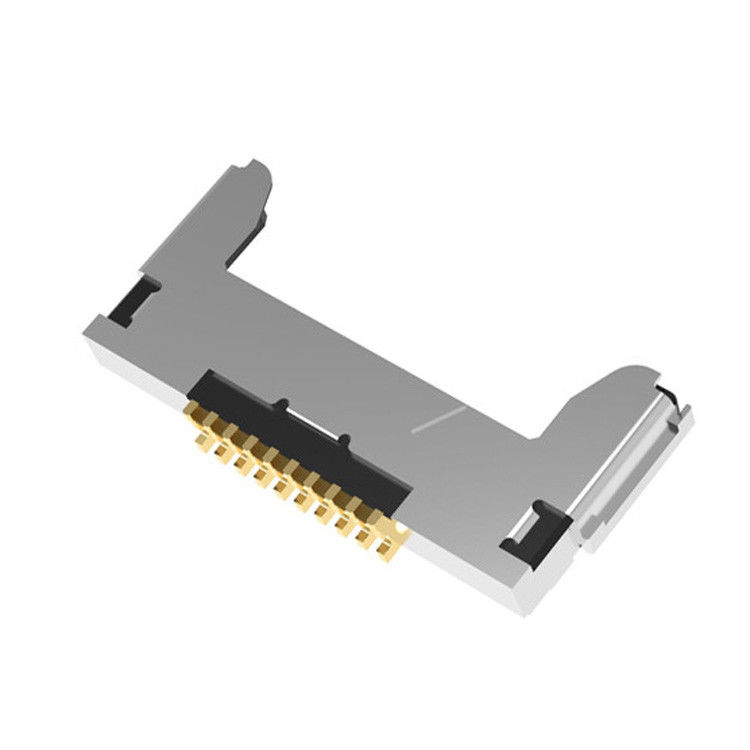

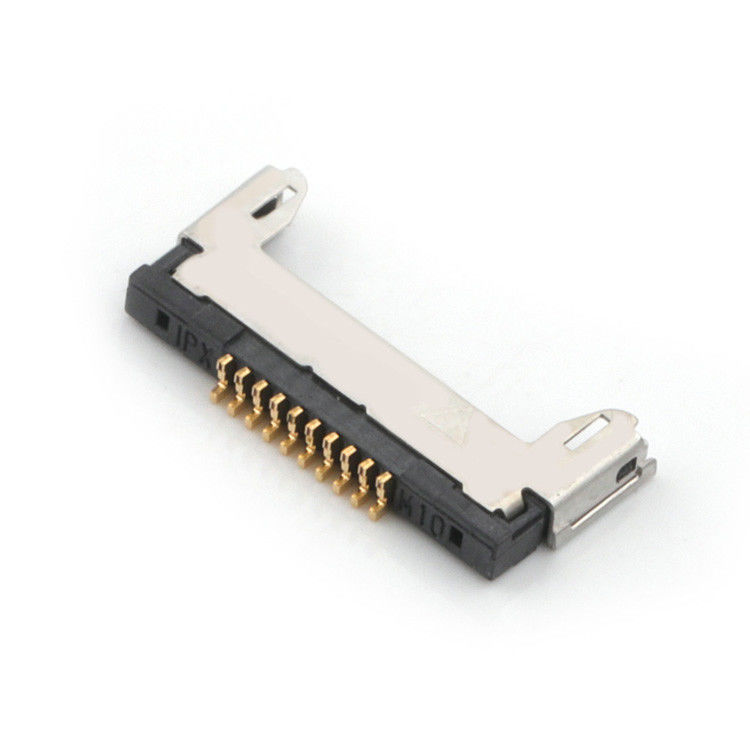

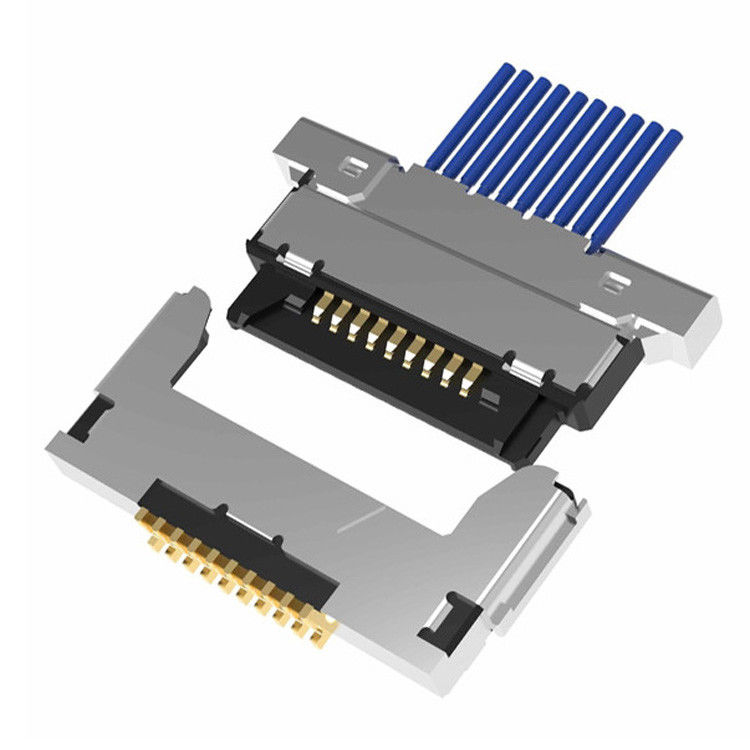

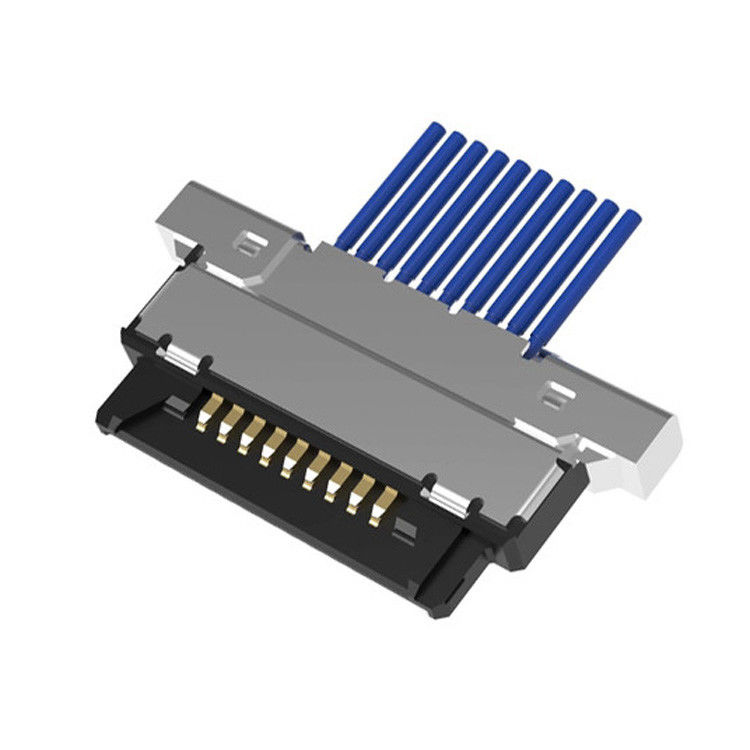

Narrow depth & width with friction lock, USB 3.1 (5 Gbps/lane), Durable to contamination, 0.4 mm pitch, Horizontal mating type micro-coaxial connector
| Mating Direction |
Horizontal
|
| Contact pitch |
0.40 mm
|
| Height |
1.15 Max (1.00 Nom.) ,
|
| Depth |
5.65 mm
|
| Width Formula |
4.80+(0.4*?p) mm
|
| Pin count |
10 15 20 25 30 35 40
|
| Micro-Coaxial Cable (AWG) |
#40 #42 #44 #46
|
| Discrete Cable (AWG) |
#36 #38 #39 #40 #42 #44 #46
|
| Current rating |
0.1A AC/DC [AWG #44] per contact/up to 40 contacts 0.24A AC/DC [AWG #42] per contact/up to 40 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.8A AC/DC [AWG #36] per contact/up to 12 contacts
|
| Applicable Standards (Reference Only) |
USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards
|
| Full shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|
Narrow depth & width with friction lock
Mechanical locking cover prevents incomplete mating and back-out/un-mating
High-data-rate transfer, ideal for Thunderbolt™ 3 (20 Gbps/lane) applications
