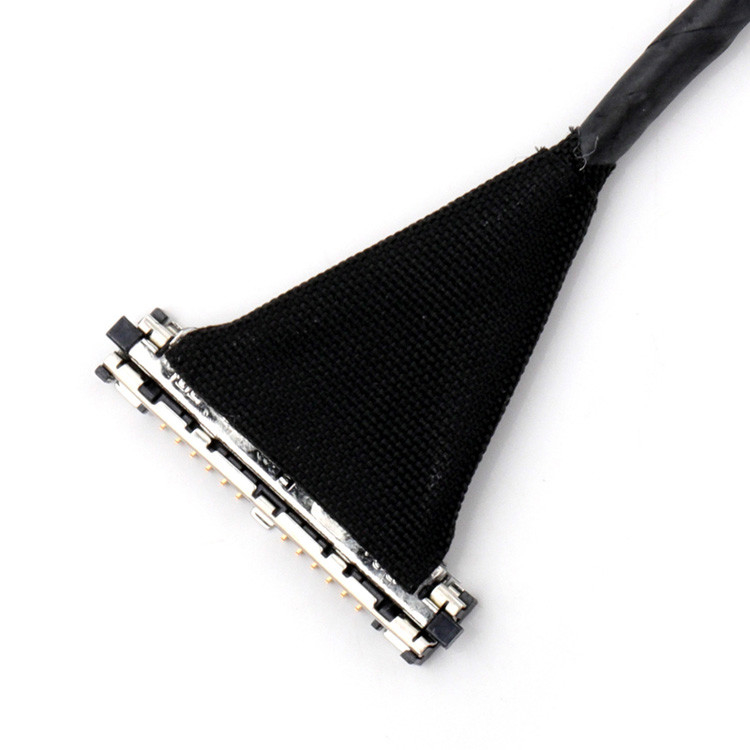

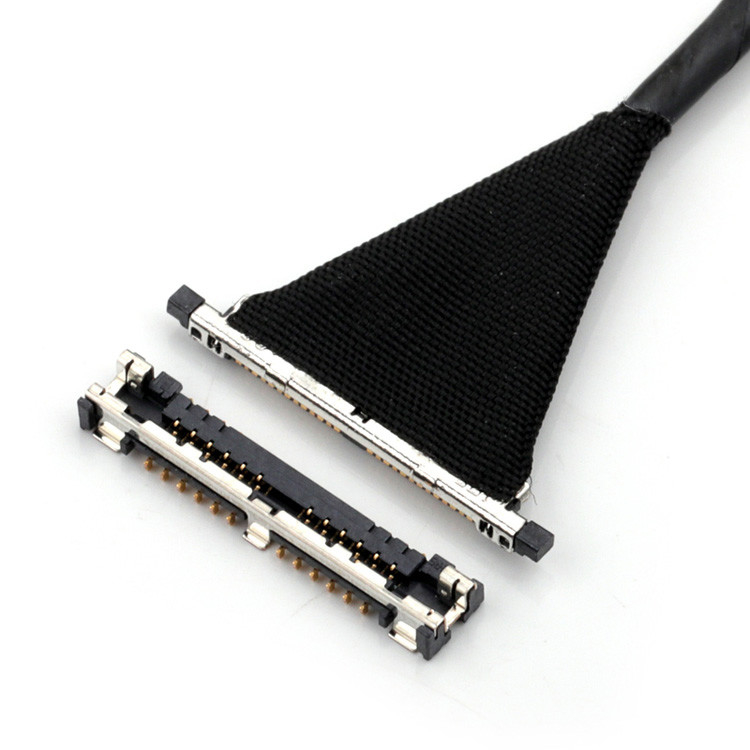

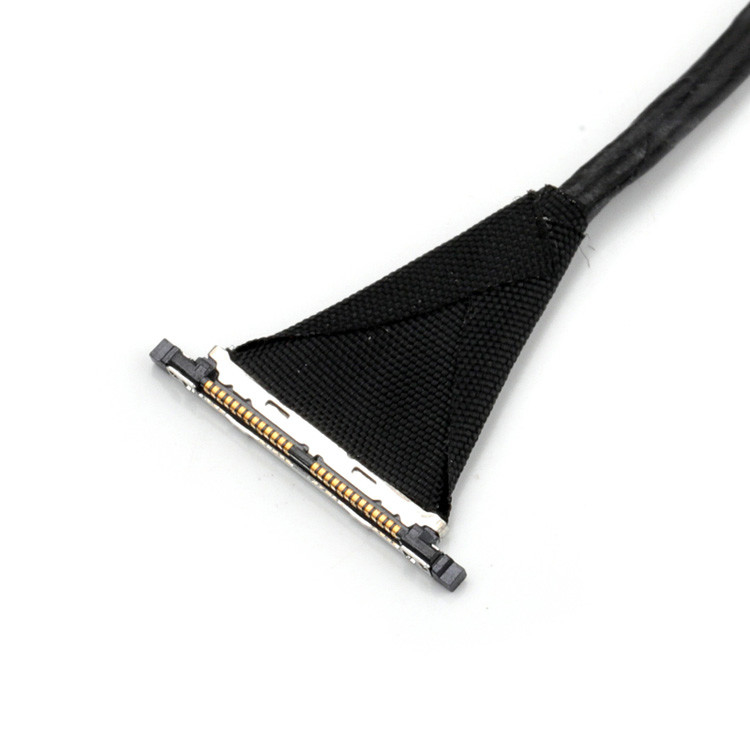

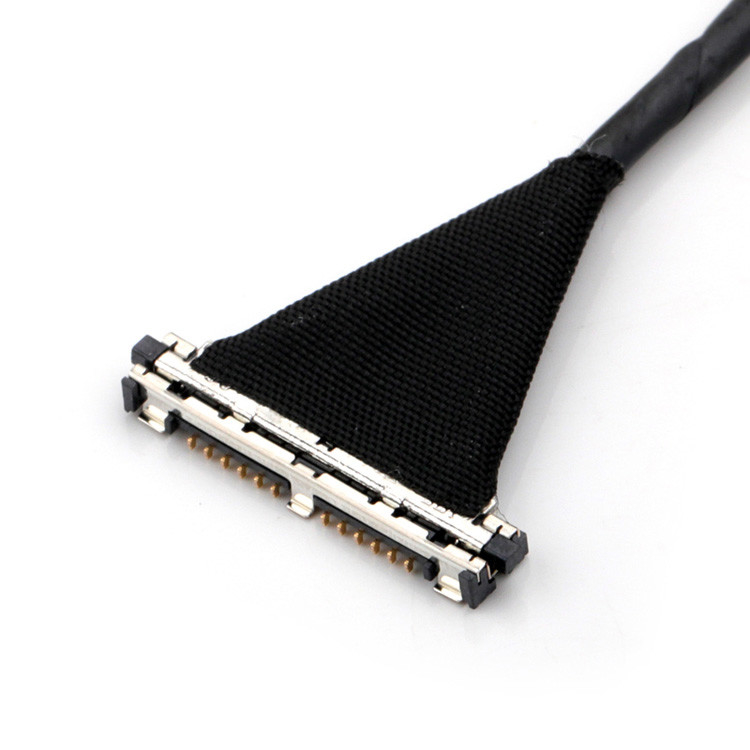

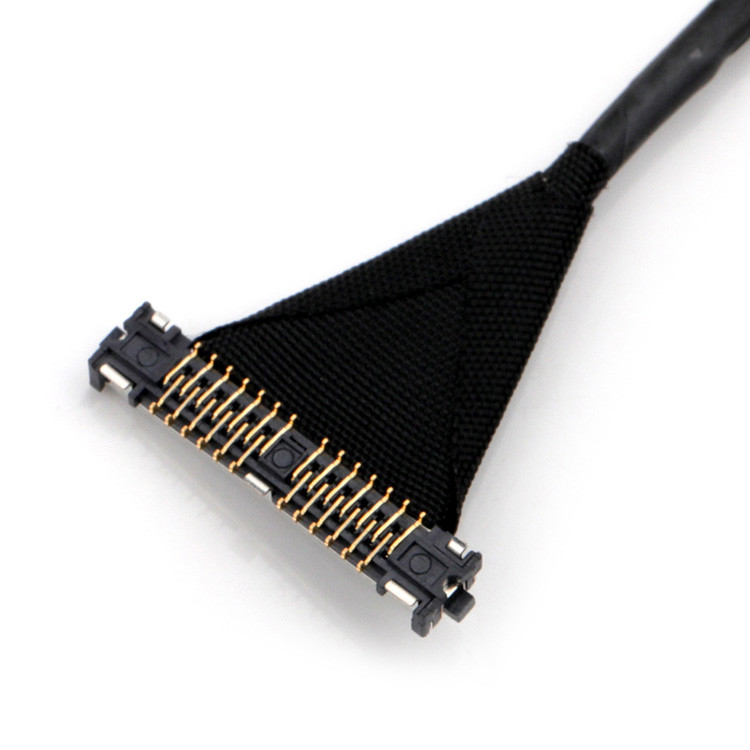

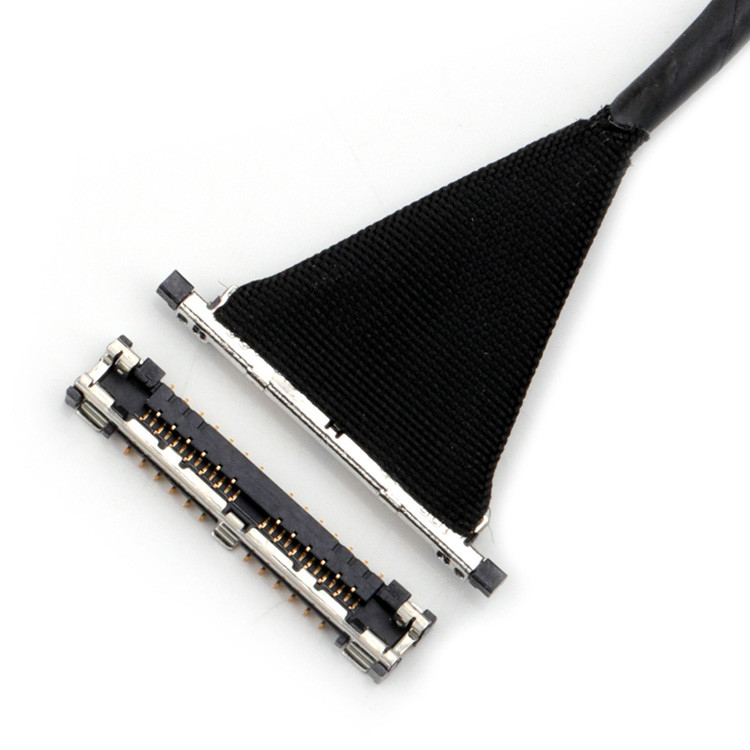

DF56 Series Micro Coaxial Cable 26P DF56-26-0.3SD Connector to Mating Connector DF56-26S-0.3V

DF56 Series Micro Coaxial Cable 26P DF56-26-0.3SD Connector to Mating Connector DF56-26S-0.3V

DF56 Series micro coaxial cable

26P micro coaxial cable

30 Pin micro coaxial cable

Place of Origin:

China

Brand Name:

RY

Certification:

CE,ROHS

Model Number:

DF56

Contact Us

Request A Quote
Product Details
Product Name::
Hirose 0.3mm Pitch DF56-26P-0.3SD 30pin Micro Coaxial Lvds EDP Cable
Cable Connector::
DF56-26P-0.3SD
Item::
30 Pin
Length::
Customize
Contact Pitch::
0.3mm Pitch
Board Connector::
DF56-26S-0.3V
Service::
Design
Number Of Positions::
26, 30, 40, 50
High Light::
DF56 Series Micro Coaxial Cable Connector, 26P Micro Coaxial Cable Connector, DF56-26-0.3SD Micro Coaxial Cable Connector
Payment & Shipping Terms
Minimum Order Quantity
Quantity quantity can be negotiable
Price
Most favorable
Packaging Details
PE inner, carton outer
Delivery Time
10-20 days upon receipt of payment
Payment Terms
L/C, T/T,Paypal, Western Union,
Supply Ability
10000pcs
Product Description



DF56 Series Micro Coaxial Cable 26P DF56-26-0.3SD Connector to Mating Connector DF56-26S-0.3V



Item Specification Conditions
1. Insulation resistance 50MΩ min. 100V DC
2. Withstanding voltage No flashover or insulation breakdown 100Vrms AC / 1 minute
3. Contact resistance Signal: 80mΩ max, Ground: 80mΩ max 100mA (DC or 1,000Hz)
4. Vibration No electrical discontinuity of 1μs or longer Frequency: 10 to 55Hz, amplitude of 0.75mm, 10 cycles on each of 3 axes
5. Humidity Contact resistance (change from initial value): 50mΩ max, Insulation resistance: 25MΩ min. 96 hours at 40 ±2°C, humidity of 90 to 95%
6. Temperature cycle Contact resistance: 50mΩ max, Insulation resistance: 25MΩ min. -55°C → 5 to 35°C → 85°C → 5 to 35°C, 5 cycles
7. Durability Contact resistance (change from initial value): 50mΩ max. 20 cycles
8. Resistance to soldering heat No deformation or affecting performance Reflow: Recommended temperature profile, Manual soldering: 350°C for 3 seconds




Product advantages:
Board-to-thin wire coaxial connector with 0.3 mm pin pitch, small assembly height, small board footprint, enhanced shielding and ground connection.
application:
1.Digital video camera
2.Drone
3. Surveillance camera
Recommended models:
DF56-26P-0.3SD (51)
DF56-30P-0.3SD (51)
DF56-40P-0.3SD (51)
DF56-50P-0.3SD (51)
DF56 Series Micro Coaxial Cable 26P DF56-26-0.3SD Connector to Mating Connector DF56-26S-0.3V 0
