Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
20679-030T-01T
Contact Us
Video
Video

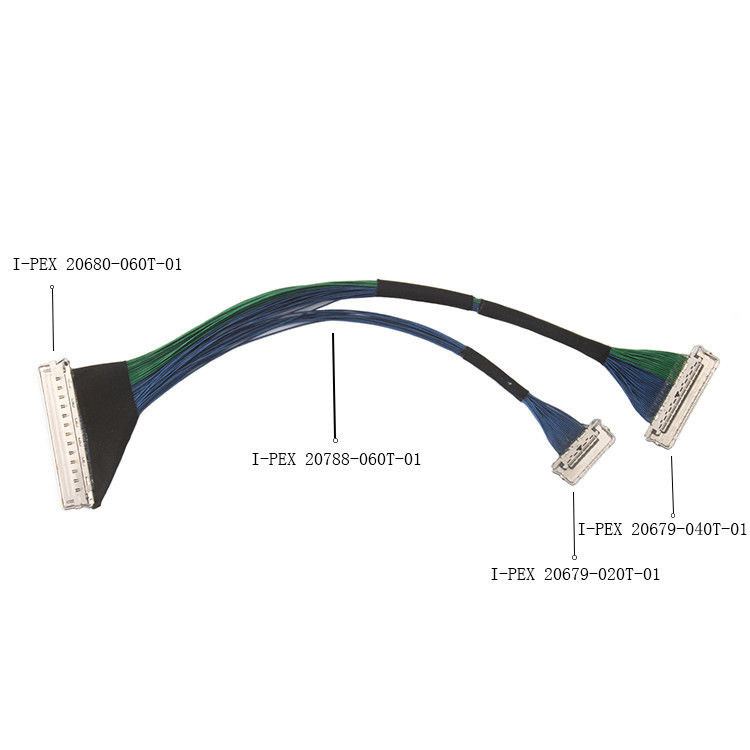

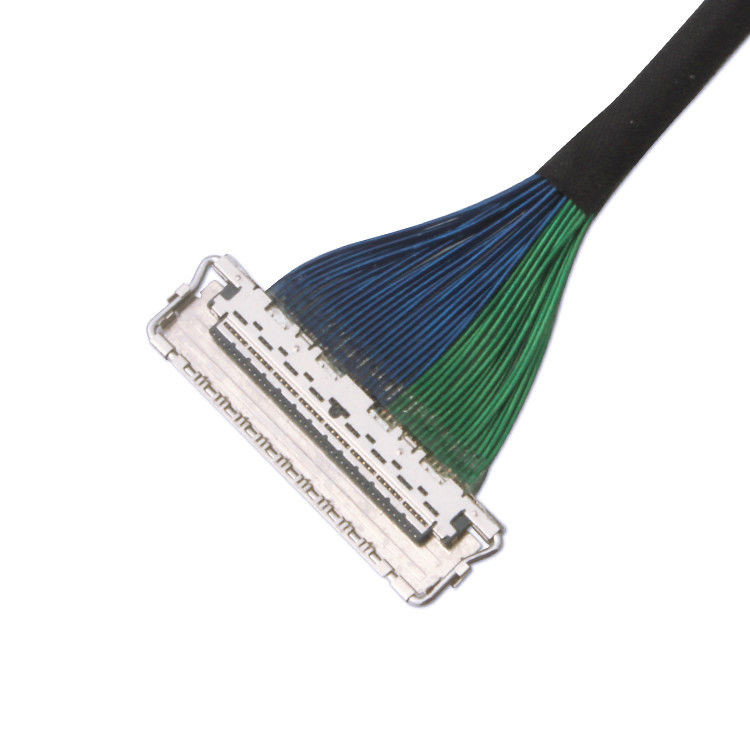

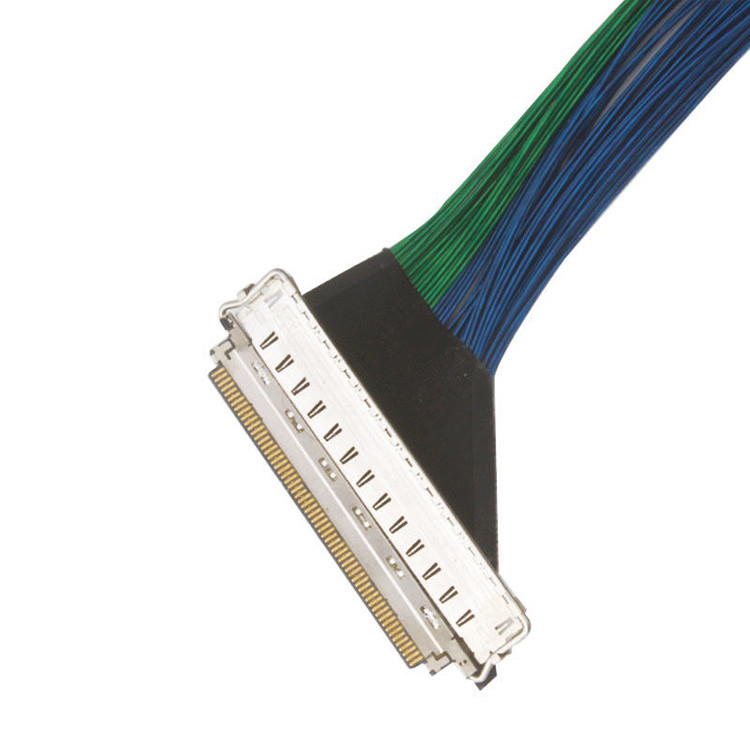

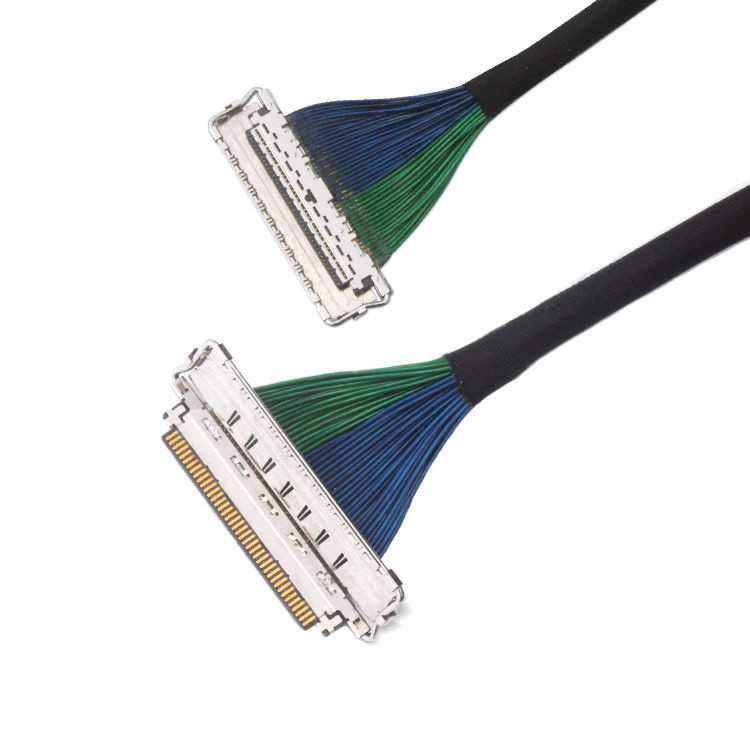

I-PEX 0.5 mm pitch 20847 3427 20848 20849 20846 Micro Coaxial cable
CABLINE-CA II PLUS
| Mating Direction | Horizontal |
|---|---|
| Contact pitch | 0.40 mm |
| Height | 1.20 Max |
| Depth | 6.70 mm |
| Width Formula | 6.95+(0.4*?p) mm |
| Pin count | 60 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 60 contacts 0.24A AC/DC [AWG #42] per contact/up to 60 contacts 0.3A AC/DC [AWG #40] per contact/up to 60 contacts 0.5A AC/DC [AWG #38] per contact/up to 18 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | Yes |
| Mechanical lock | Yes |
Our Company:
RY Electronic Technology Co., Ltd., with ten years of rich experience, is a company focusing on the design, development and production of customized cable and connector products. Our product range covers: FFC/FPC cables, flat flexible ribbon cables, LVDS cables, custom wiring harnesses, JST wiring harnesses Molex cable assemblies, circular connectors, ISOBUS connectors, micro coaxial connectors, etc.
We have been deeply involved in the industry for many years and have accumulated rich experience and expertise. We are committed to providing customers with high-quality and reliable customized solutions. If you need personalized customized cable and connector products, please contact us, we look forward to providing you with excellent service and product quality.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. You'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
• Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.
• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.
• Q: What’s your payment term?
A: We usually accept PAYPAL,T/T as the main payment term, and other payments can also be negotiated.
• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .
A:What other guarantees are there?
• Q: We have professionals to provide one-on-one after-sales service to provide buyers with the best after-sales service
A:How to contact us?
• Q:send your inquiry details in the below, click "send" now! free sample and best price are waiting foryou, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make it, we will find the same product with good quantity and good price.
Send your inquiry directly to us
