Place of Origin:
china
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
R series 16P military waterproof connector
Contact Us

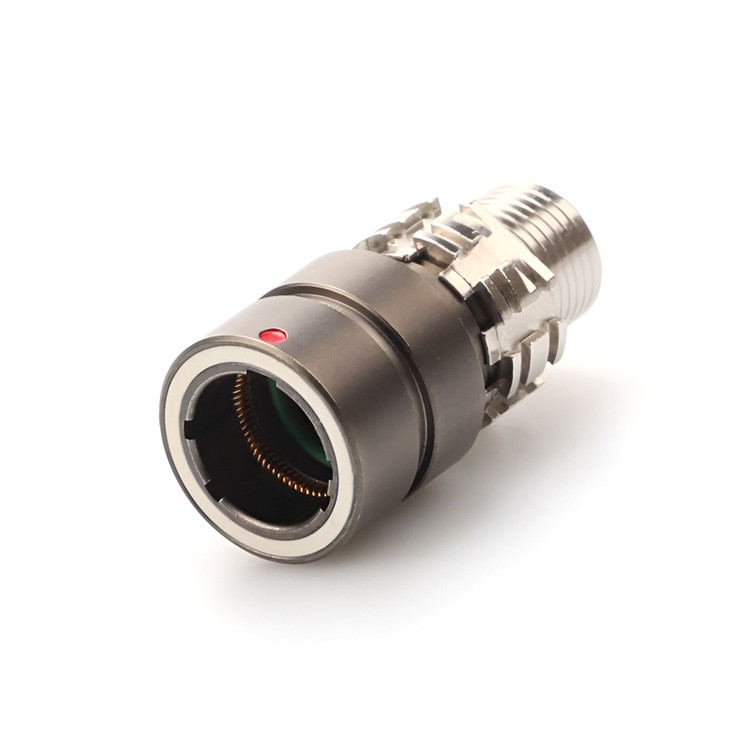

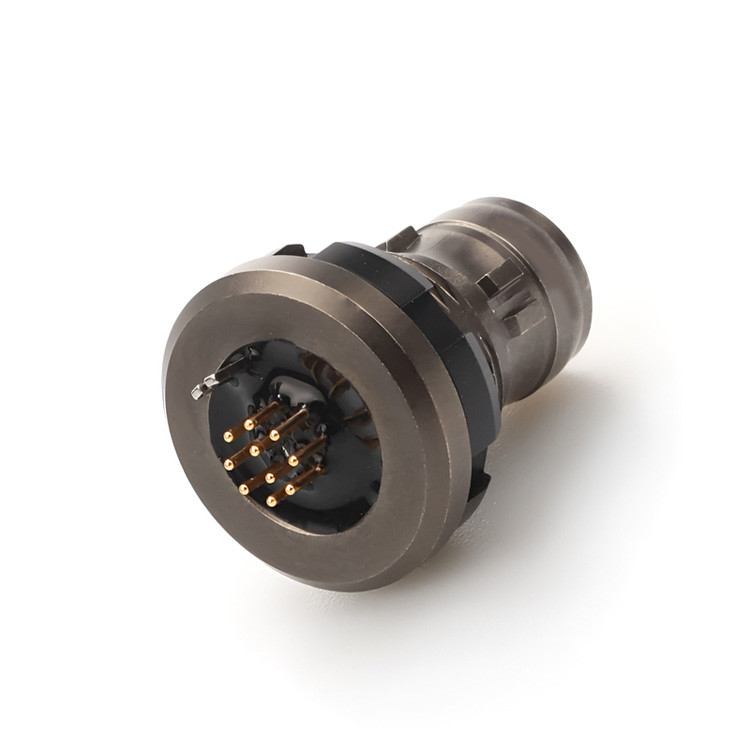

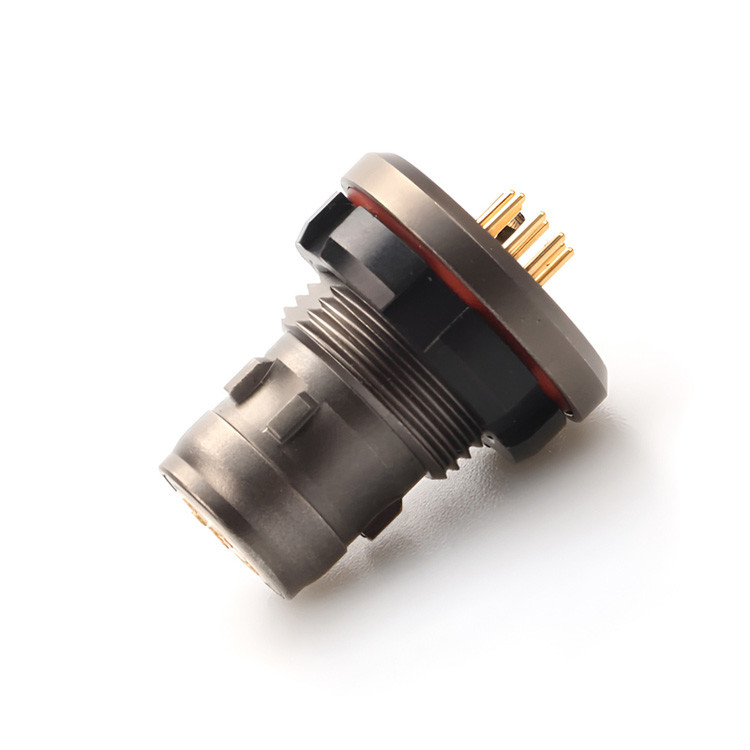

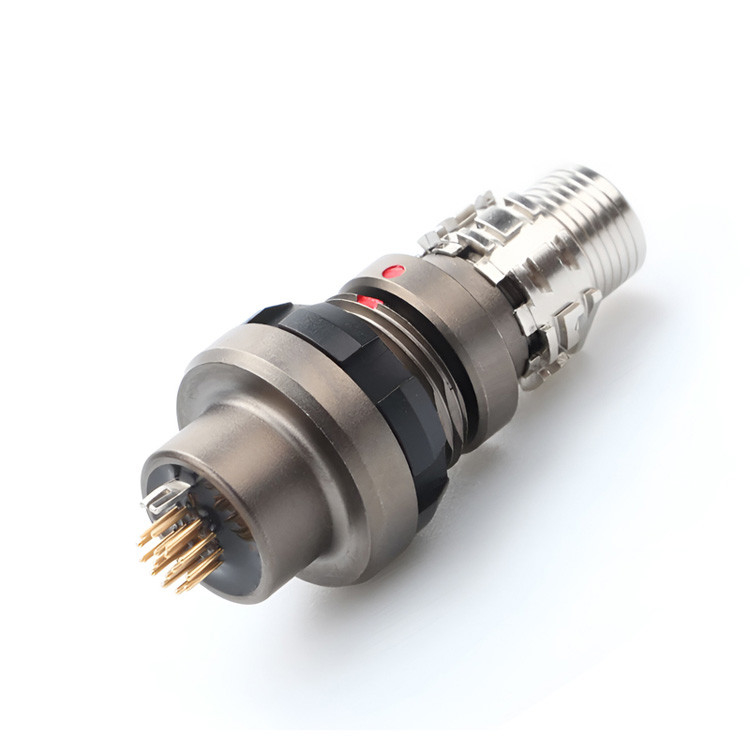

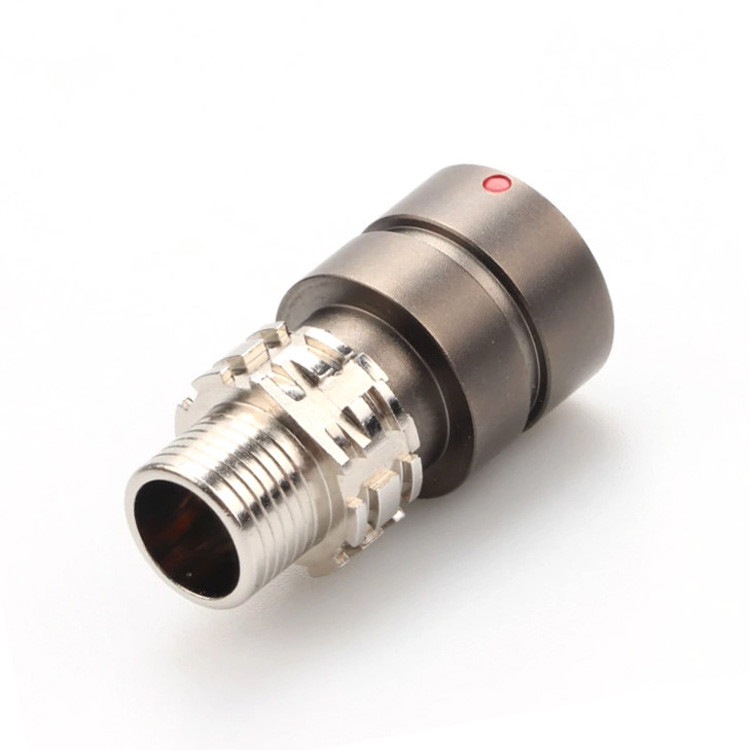

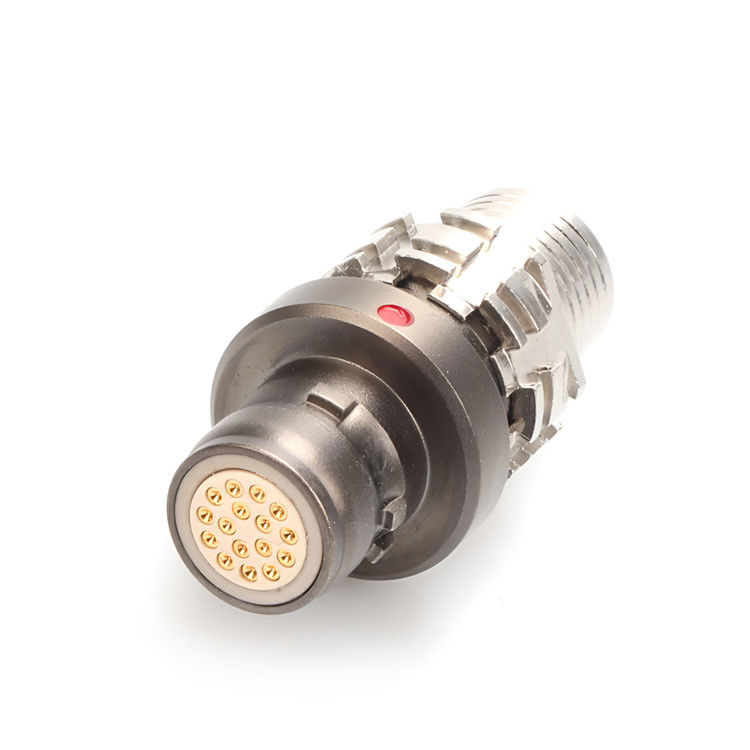

B Series Push Pull Circular Connector Multi-core type 2~32 core
welding needle core (straight or angled)
| Parameter | Specification |
|---|---|
| Maximum Humidity | Up to 95% at 60°C / 140°F |
| Locking Type | Break-away |
| Strike | 100g [6ms] |
| Vibration | 15g [10Hz ~ 2000Hz] |
| Insulation Impedance | > 5000MΩ |
| Operating Voltage | 200V AC |
| Rated Current | 1.1A |
| Salt Spray | 96 hours |
| Shielding Property | 75dB (10MHz), 40dB (1GHz) |
| Maximum Moisture | <= 95% |
| Protection Index (mated) | IP68 |
Our Company:
RY Electronic Technology Co., Ltd. boasts a decade of expertise in crafting customized cable and connector solutions. Specializing in FFC/FPC cables, flat flexible ribbon cables, LVDS cables, JST Wire Harness and more, we are dedicated to delivering top-tier products tailored to your needs.
With a strong focus on quality assurance, most of our products are certified with UL, CE, ROHS, and ISO9001:2008 standards. We offer flexible Minimum Order Quantities (MOQs) ranging from 5 to 50 units, ensuring accessibility for various requirements. Benefit from swift deliveries within 3 to 15 days, backed by our unwavering commitment to punctuality.
Our company provides and produces various cable assemblies in the fields of drones, AR/VR, AR, VR, etc. micro coaxial cables, radar/navigation, cameras, security monitoring, face recognition payment, etc., and has established cooperative relationships with customers. We have a strong and experienced technical team that can provide you with efficient solutions.
Advantages & Services:
Rigorous quality control and adherence to industry standards.
Low MOQs to accommodate diverse needs.
Swift delivery times with a guarantee of on-time delivery.
Responsive after-sales support and a 1-year warranty.
Extensive OEM/ODM services tailored to your specifications.
Assured product quality, on-time shipments, and payment protection.
FAQ:
• Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.
• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.
• Q: What’s your payment term?
A: We usually accept PAYPAL,T/T as the main payment term, and other payments can also be negotiated.
• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .
Q:What other guarantees are there?
• A: We have professionals to provide one-on-one after-sales service to provide buyers with the best after-sales service
Q:How to contact us?
• A:send your inquiry details in the below, click "send" now! free sample and best price are waiting foryou, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make it, we will find the same product with good quantity and good price.
Send your inquiry directly to us
