Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
I-Pex 20531-34-01
Contact Us
Video
Video

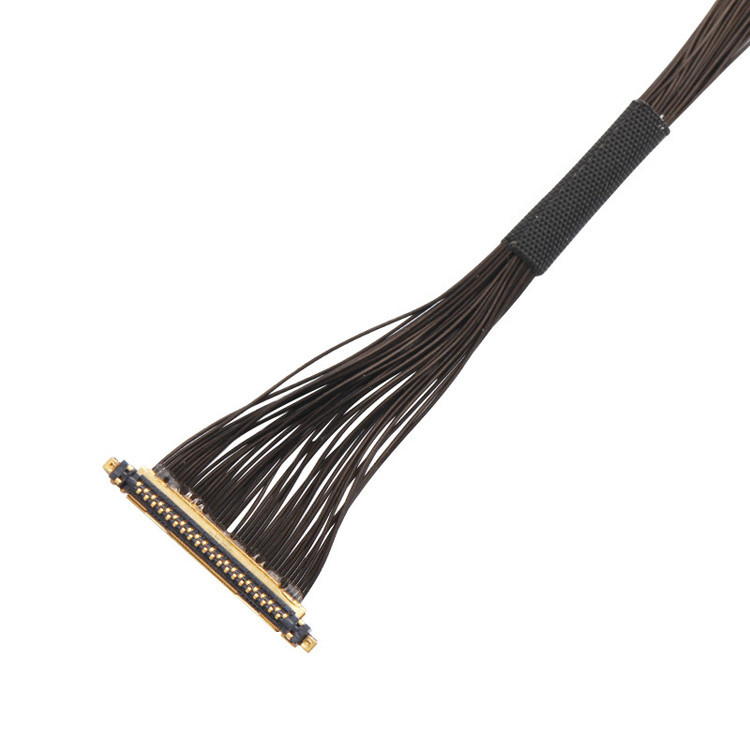

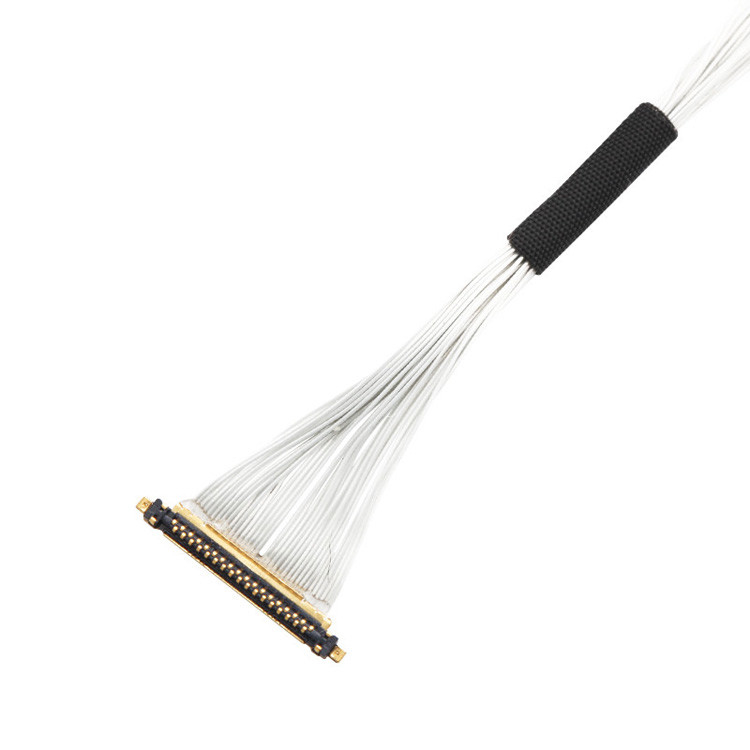

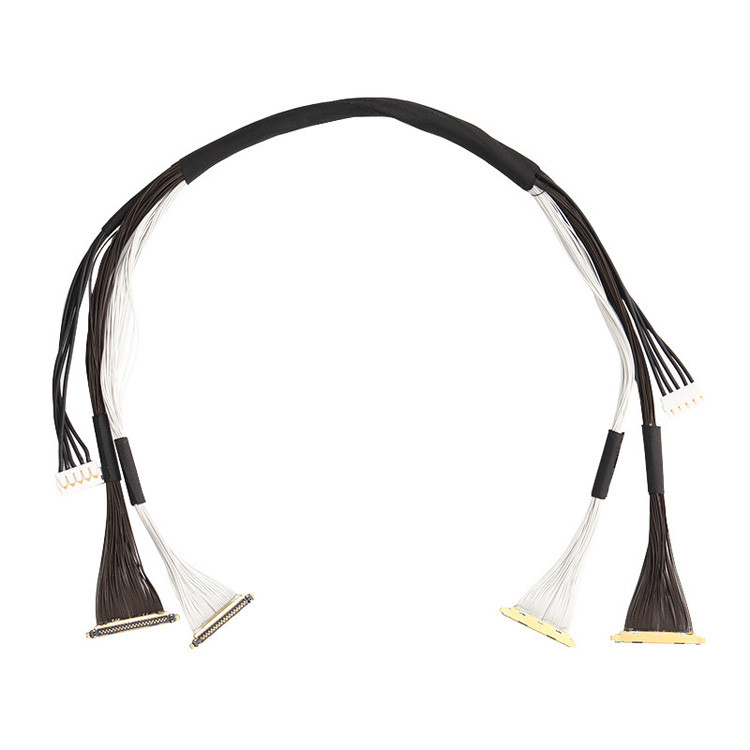

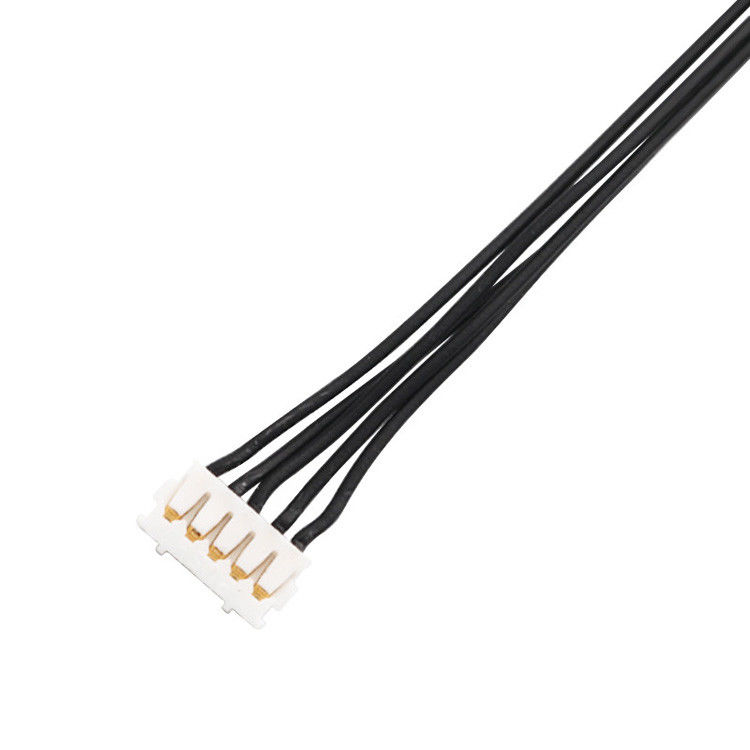

0.25 Pitch I-Pex 20531-34-01 To Jst Auhr-05v-H 34pin Lvds Edp Cable Cable Assembly
Suitable for Small Connector Spaces
Slim Plug Design, Suitable For Through-hinge Assemblies
EMI Shielding and Multi-point Ground Design
| Contact pitch |
0.25mm
|
| Height |
1.37 Max (1.27 Nom.)
|
| Available Pin Count | 30 34 40 50 |
| Mating Direction |
Vertical
|
| Current rating | Contact Material: Phosphor Bronze (Plug : 20531-0**T-02, Receptacle: 20533-0**E) 0.15A AC/DC [AWG #44] per contact 0.10A AC/DC [AWG #46] per contact Contact Material: Corson Allow (Plug: 20531-0**T-12, Receptacle: 20533-0**E-01) 0.19A AC/DC [AWG #44] per contact 0.14A AC/DC [AWG #46] per contact |
Micro coaxial cable for customizing I-PEX CABLINE UA II micro coaxial cable connector:
Mini coaxial cable provides a large number of signal transmission options, especially suitable for applications
Cable routing space is limited. PFA dielectric and sheath are signal integrity, low capacitance,
And consistent controlled impedance. Mini coaxial cables save space and make wiring easier
Applications, such as medical probes, endoscope systems, blood oxygen measurement systems, industrial inspections, etc.
|
||||||||||||||
Micro coaxial Cable assemblies, eDP Cable assembly, LVDS Cable Assembly, I-PEX micro coaxial cable,
Fine pitch Wire Harness manufacturers
Application: AR, VR drone, camera
Interface Signal (LVDS / MIPI / eDP / USB / HDMI)
Our Company:
RY Electronic Technology Co., Ltd., with ten years of rich experience, is a company focusing on the design, development and production of customized cable and connector products. Our product range covers: FFC/FPC cables, flat flexible ribbon cables, LVDS cables, custom wiring harnesses, JST wiring harnesses Molex cable assemblies, circular connectors, ISOBUS connectors, micro coaxial connectors, etc.
We have been deeply involved in the industry for many years and have accumulated rich experience and expertise. We are committed to providing customers with high-quality and reliable customized solutions. If you need personalized customized cable and connector products, please contact us, we look forward to providing you with excellent service and product quality.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. You'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
