Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
X Series 8P Industrial Waterproof Circular Connector
Contact Us

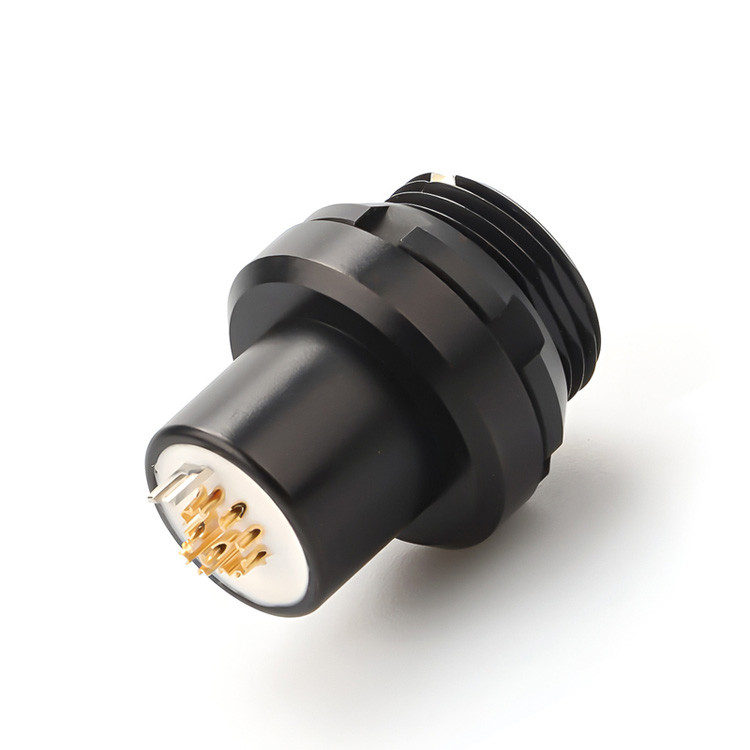

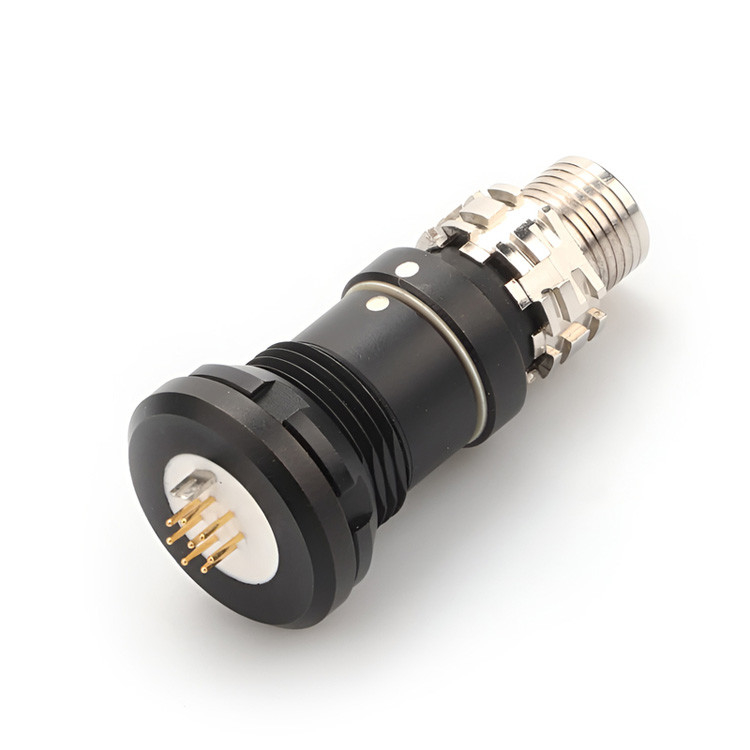

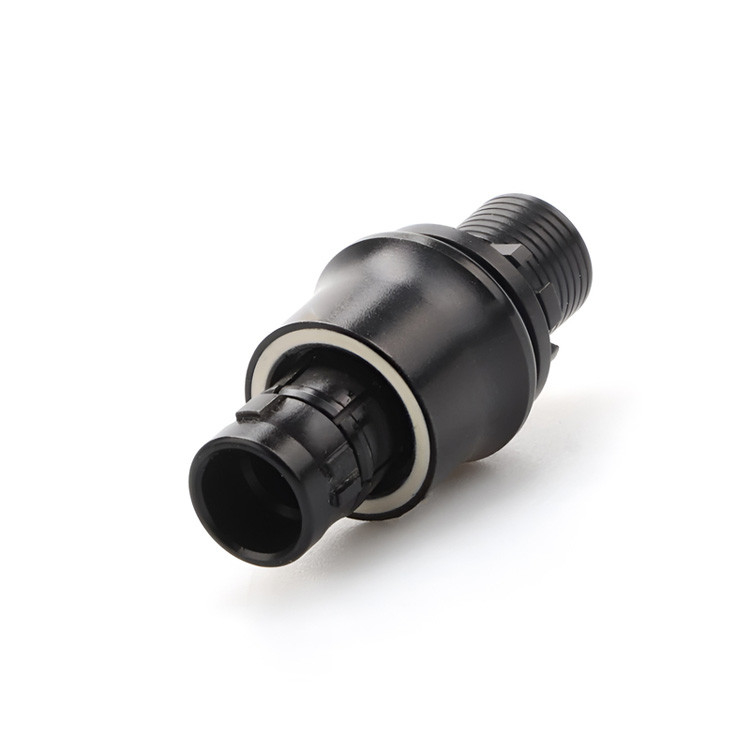

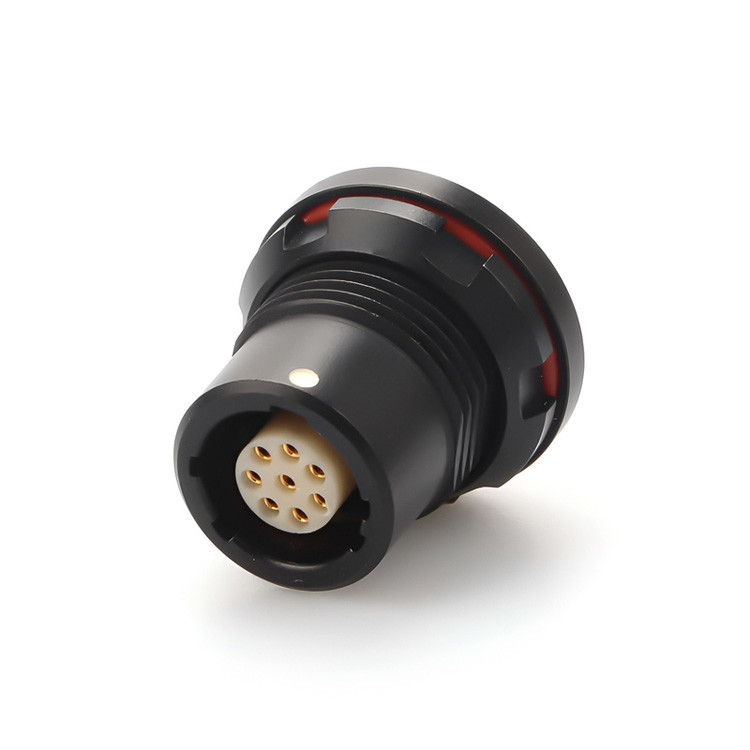

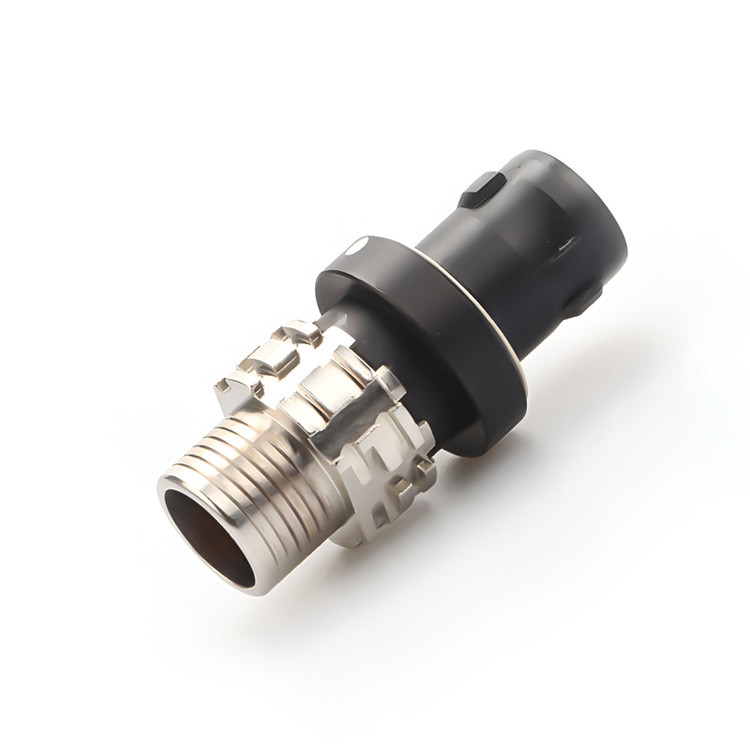

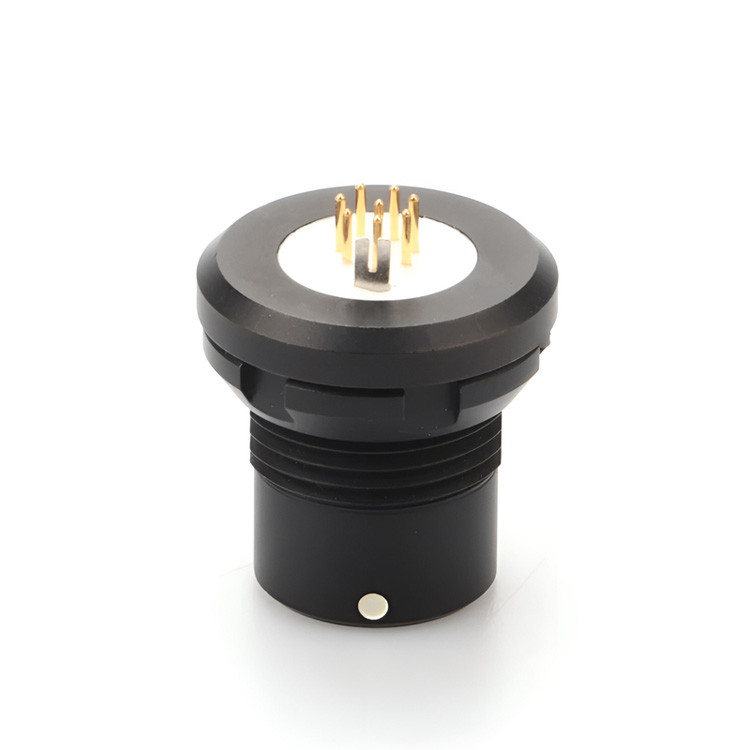

Industrial Waterproof Circular Connector X Series 8P Military Connector
- High Speed Data Transmission
| Parameter | Specification |
|---|---|
| Insertion and Removal Times | > 5000 times |
| Vibration | 10Hz ~ 2000Hz, 147m/s², 4h in each direction |
| Shock | 980m/s², 6ms, half sine wave, 6 times |
| Salt Spray | (35°C soil 2°C), 5% NaCl, 96 hours |
| Moisture Humidity | 90% ~ 98%; Insulation resistance ≥ 100MΩ |
| High and Low Temperature | -55°C ~ +125°C, 30min, cycle 10 times |
| Waterproof | IP68, immersed in water 1.5m for 24h, air insulation resistance > 50MΩ after 30 minutes |
| Insulation Resistance | 25°C, > 5000MΩ |
Our Company:
RY Electronic Technology Co., Ltd. boasts a decade of expertise in crafting customized cable and connector solutions. Specializing in FFC/FPC cables, flat flexible ribbon cables, LVDS cables, JST Wire Harness and more, we are dedicated to delivering top-tier products tailored to your needs.
With a strong focus on quality assurance, most of our products are certified with UL, CE, ROHS, and ISO9001:2008 standards. We offer flexible Minimum Order Quantities (MOQs) ranging from 5 to 50 units, ensuring accessibility for various requirements. Benefit from swift deliveries within 3 to 15 days, backed by our unwavering commitment to punctuality.
Our company provides and produces various cable assemblies in the fields of drones, AR/VR, AR, VR, etc. micro coaxial cables, radar/navigation, cameras, security monitoring, face recognition payment, etc., and has established cooperative relationships with customers. We have a strong and experienced technical team that can provide you with efficient solutions.
Advantages & Services:
Rigorous quality control and adherence to industry standards.
Low MOQs to accommodate diverse needs.
Swift delivery times with a guarantee of on-time delivery.
Responsive after-sales support and a 1-year warranty.
Extensive OEM/ODM services tailored to your specifications.
Assured product quality, on-time shipments, and payment protection.
FAQ:
• Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.
• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 3-7 days to produce the products.
• Q: What’s your payment term?
A: We usually accept PAYPAL,T/T as the main payment term, and other payments can also be negotiated.
• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .
Q:What other guarantees are there?
• A: We have professionals to provide one-on-one after-sales service to provide buyers with the best after-sales service
Q:How to contact us?
• A:send your inquiry details in the below, click "send" now! free sample and best price are waiting foryou, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make it, we will find the same product with good quantity and good price.
Send your inquiry directly to us
