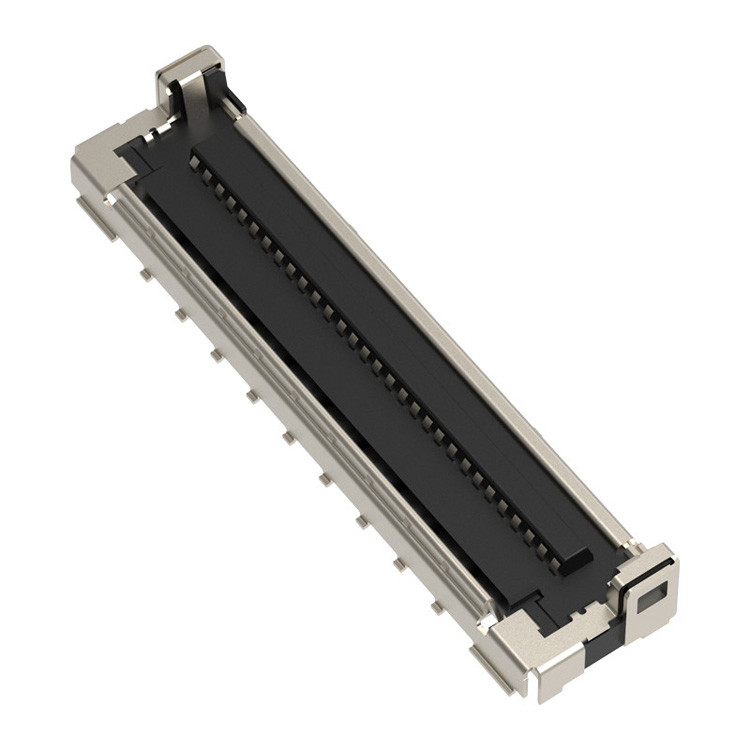

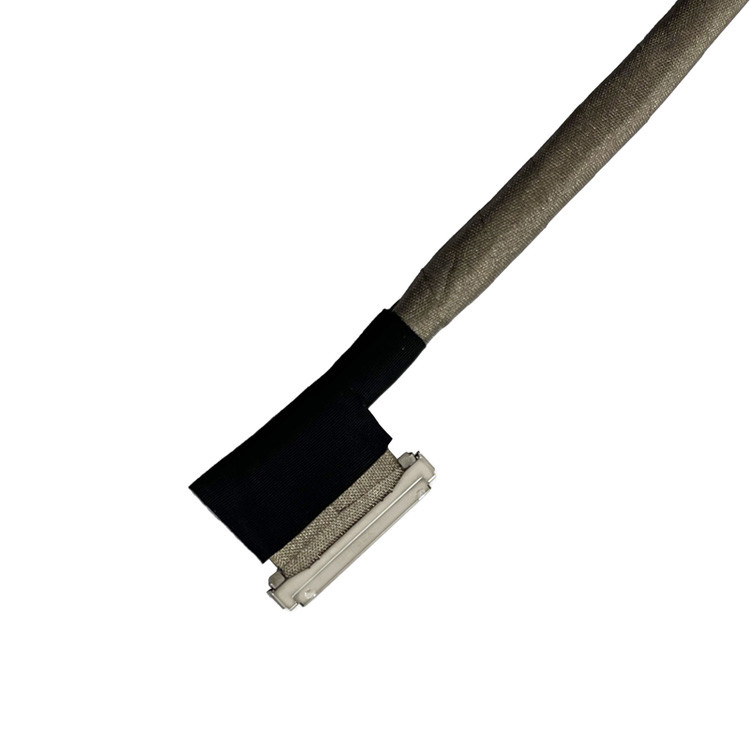

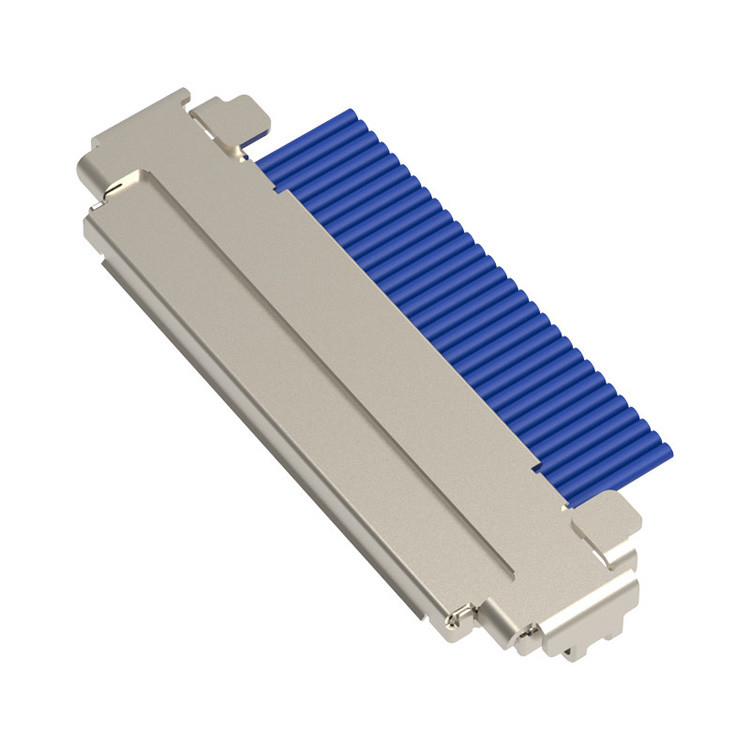

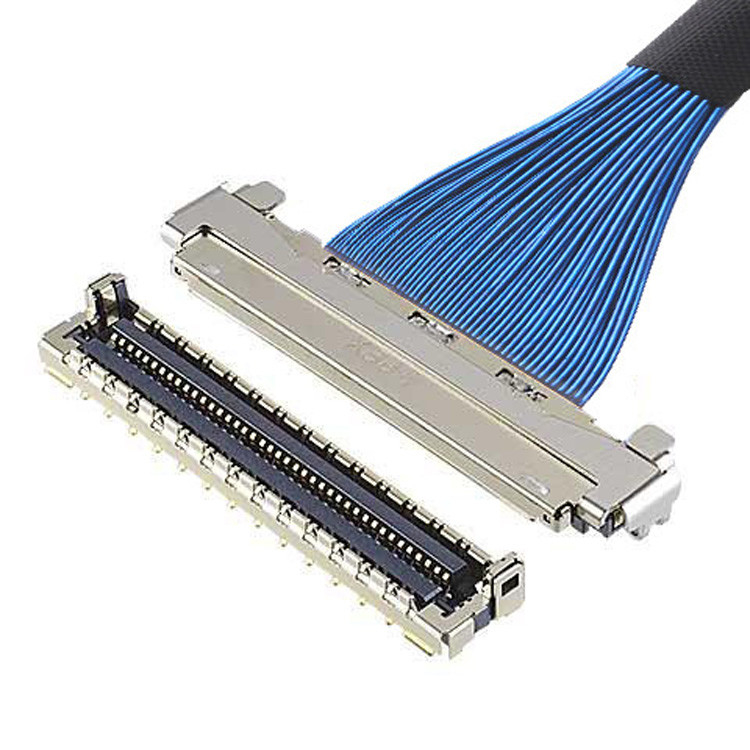

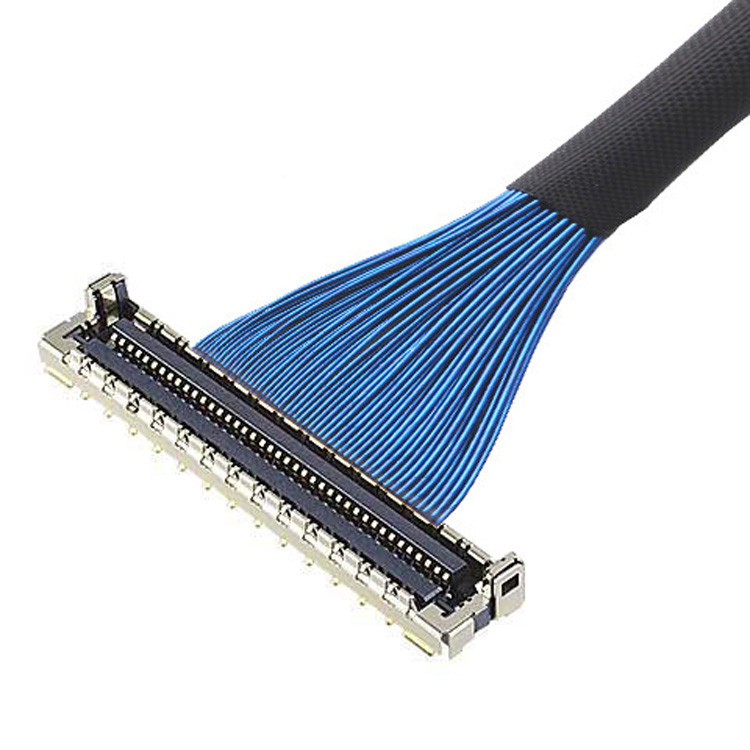

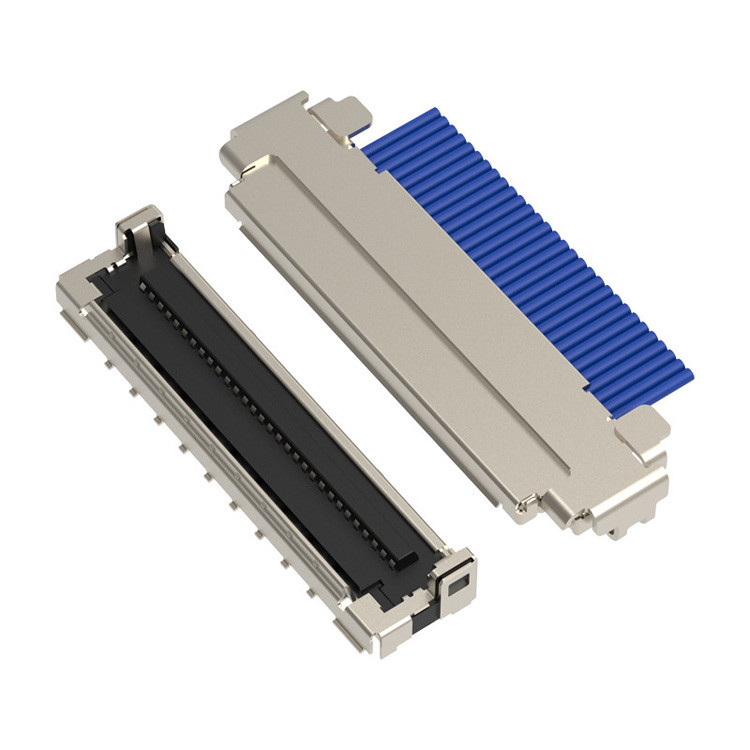

IPEX MICRO COAX CABLE 30P CABLINE-UM 20878-030T-01
Micro Coaxial LVDS Cable With EMC shielding and mechanical locking
1. ZenShield® fully-shielded with multi-point grounds to prevent EMI leakage
2. High mating retention force with mechanical locking cover
3. High contact reliability
| Mating Direction | Vertical |
| Contact pitch | 0.40 mm |
| Height | 2.35 Max (2.20 Nom.) , |
| Depth | 5.00 mm |
| Width Formula | With Lock Cover : 5.0 + (0.4 * ?p); Without Lock Cover : 4.2 + (0.4 * ?p) mm |
| Pin count | 30,40, 60 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating |
0.1A AC/DC [AWG #44] Per Contact 0.24A AC/DC [AWG #42] Per Contact 0.3A AC/DC [AWG #40] Per Contact 0.5A AC/DC [AWG #38] Per Contact 0.8A AC/DC [AWG #36] Per Contact 1.0A AC/DC [AWG #34] Per Contact
|
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Full shielding (ZenShield®) | Yes |
| Mechanical lock | Yes |
