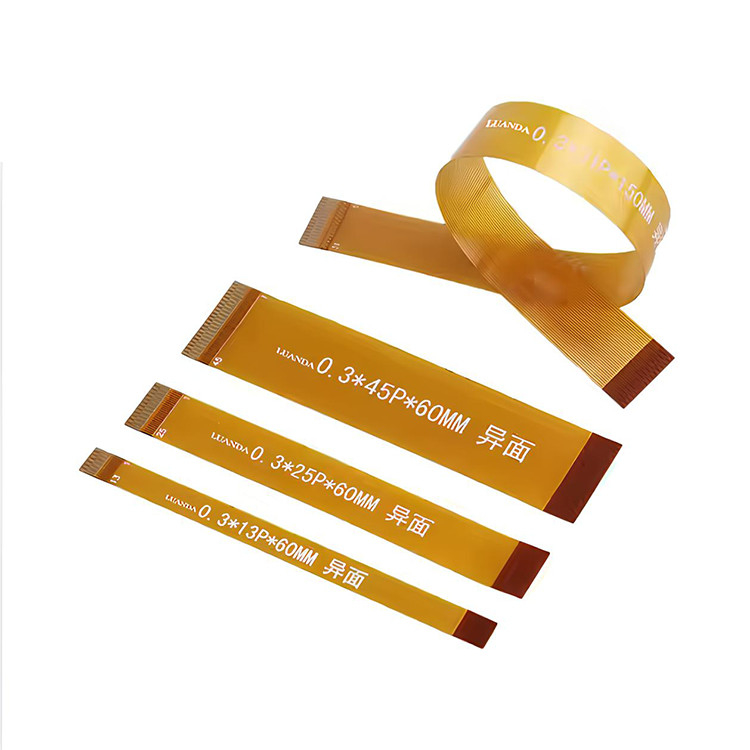

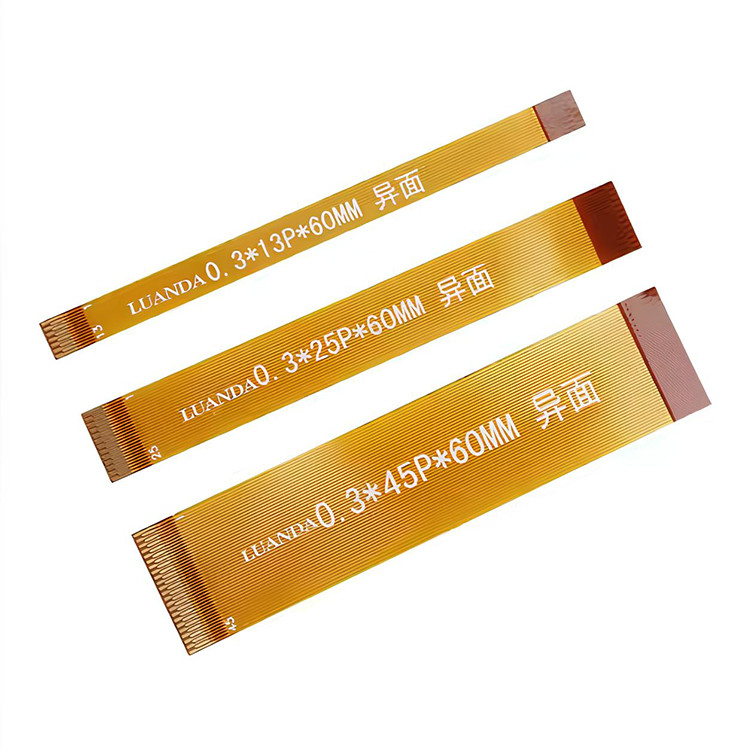

FPC 0.3mm Pitch LVDS MIPI LCD Cable 9P 11P 13P 15P 19P 21P 23P 25P 29P 31P 33P 35P 39P 41P 43P 45P Flex Circuit Board

0.3mm Pitch ffc fpc cable

9p ffc fpc cable

11p ffc fpc cable

Place of Origin:

China

Brand Name:

Certification:

CE,ROHS

Model Number:

RY-0.3 mm Double layer FPC

Request A Quote

FPC 0.3mm Pitch LVDS MIPI LCD Cable 9P 11P 13P 15P 19P 21P 23P 25P 29P 31P 33P 35P 39P 41P 43P 45P Flex Circuit Board

Product Details

Type:

FPC

Copper Thickness:

1/2 Oz

Min. Hole Size:

0.1 Mm

Min. Line Width:

0.125 Mm

Min. Line Spacing:

±0.05 Mm

Surface Finishing:

Immersion Gold ;Gold Plating ;Imm Tin ; OSP

Layer:

1-2 Layer(flex Board)

Payment & Shipping Terms

Minimum Order Quantity

quantity can be negotiable

Price

Most favorable

Packaging Details

PE inner, carton outer

Delivery Time

Shipped in 9-12 days after payment

Payment Terms

L/C, T/T,Paypal, Western Union,

Supply Ability

10000pcs

Custom 1.25mm Pitch Awm 20624 80c 60v Vw 1 FFC FPC Connector 16 24 45 80 Pin Wire Harness Flexible Flat Cable PCB Socket

Get Best Price

FFC/FPC IS100-L08T-C46-C Black To HS100-L08N-N62 Black LED FFC Extension Cable

Get Best Price

OEM / ODM FPC Connector Cable Sino Tech AWG 40 30V Wiring Harnesses

Get Best Price

16 Pin FFC FPC Cable AWM 20628 0.5 Pitch For PCB Connection With LVDS Display Connector

Get Best Price

86--13405295160

info@rygroup.net

Contact Now

Product Description

Customization FPC Layer Parameter

Project	Processing Capability	Detailed Process
Number Of Plies	Floors 1 to 8	The number of layers indicates the number of FPC lines
FPC Structure	One Side	Conventional plate thickness 0.08-0.12MM
	Two Side	Conventional plate thickness 0.1-0.2MM
	Three Layer	Conventional plate thickness 0.13-0.2MM
	Four Layer	The reference thickness of the wire body is 0.2-0.25MM
	Five Layer	The reference thickness of the wire body is 0.24-0.28MM
	Six Layer	The reference thickness of the wire body is 0.28-0.33MM
	Eight Layer	The reference thickness of the wire body is 0.35-0.4M

Craft Process

Fpc Board Thickness	Single Side 0.08-0.12MM	1) refers to the thickness of the FPC soft board, excluding the thickness of the reinforced material, such as the measurement area without copper or no covering film, the thickness of the finished product will be reduced accordingly. 2) If the white covering film is used, the thickness of the single panel will increase by 18um, and the double panel will increase by 36um.
Fpc Board Thickness	Double Side 0.1-0.2MM
Base Material Copper Foil Thickness	12u(1/3OZ),18μ(1/ 2OZ ),35μ( 1OZ )/ 70μ( 2OZ )	Refers to FPC line layer copper foil thickness.
Surface Treatment	Sink gold, sink tin, OSP	It means to sink a nickel gold layer on the surface of the line pad to prevent the pad from oxidation.
Reinforcement Area Thickness	Total thickness of the reinforcement area=FPC plate thickness + reinforced thickness	Insert and remove gold finger or add thickness to use.

Process Parameter

Aperture tolerance(Plated through hole)	±0.05mm
Hole bore tolerance(non plated through hole)	±0.05mm
Positioning hole and PAD tolerance	±0.05mm
Design minimum line width/line spacing	1 ounce 0.1/0.1mm±0.03mm
	1/2 ounce 0.06/0.06mm±0.02mm
	1/3 ounce 0.06/0.06mm
Etching tolerance	±0.02mm
Text alignment accuracy tolerance	±0.2mm
Precision tolerance for solder alignment	±0.05mm
FPC thickness tolerance	±0.03mm
PI reinforcement thickness tolerance	±0.03-0.05mm
Steel sheet and FR4 reinforced thickness tolerance	±0.05mm
Fit reinforcing plate and finger window opening tolerance	±0.2mm
Laser (shape and hole) tolerance	±0.05mm
Impact contour tolerance(edge to edge)(Steel mould)	±0.1mm,Precision membrane ±0.05mm
Environmental protection requirement	Comply with ROHS and REACH standards
Thermal stress test	Comply with ROHS and REACH standards
