Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
IPEX 20952-024E-02 0.5mm
Contact Us

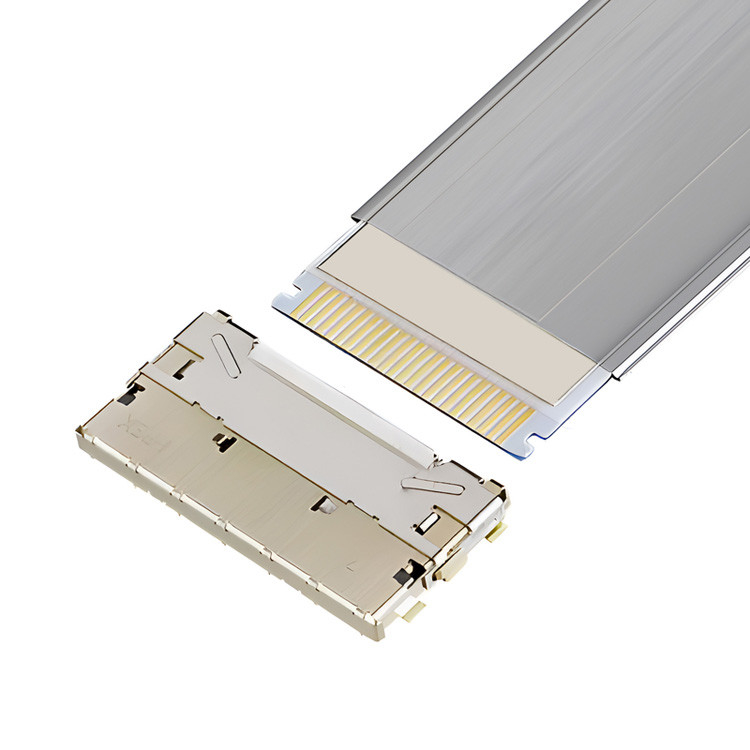

IPEX 20952-024E-02 FPC connector with built-in shield lock
IPEX 20952-024E-02 FPC connector Product Specifications:
| Product Type |
Auto-lock
|
| Mating Direction |
Horizontal
|
| Contact pitch |
0.50 mm
|
| Height |
2.20 Max (2.00 Nom.) ,
|
| Depth |
8.43 mm
|
| Width Formula |
5.2+(0.5*?P) mm
|
| Pin count |
24
|
| FPC/FFC Thickness |
0.30
|
| Current rating |
0.3A / Signal pin
|
| Applicable Standards (Reference Only) |

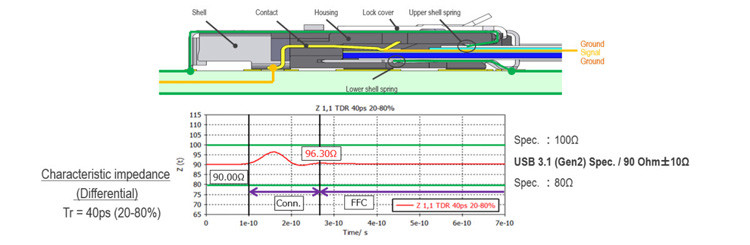

USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps)
|

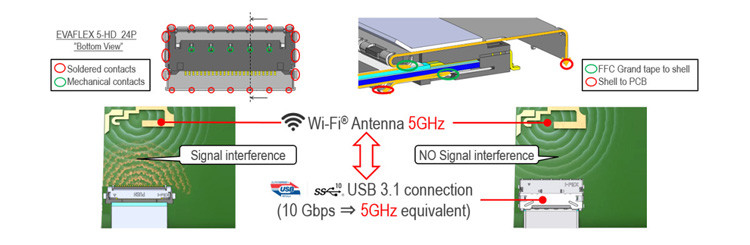

| Full shielding (ZenShield®) |
Yes
|

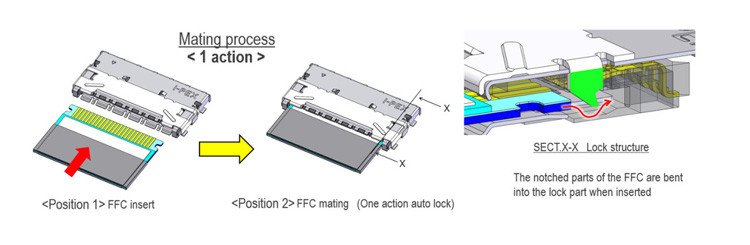

| Mechanical lock |
Yes
|
| Shielded FPC / FFC |
Yes
|
FFC Flat Cable Application:
1. FFC wiring harness for Car DVD
2. FFC wiring harness for Displayer
3. FFC wiring harness for Sound;Box
4. FFC wiring harness for Airbag line
5.FFC wiring harness for Inkjet printer
6. FFC wiring harness for Flat screen;TV
7. FFC wiring harness for Digital camera
8.FFC wiring harness for Pictorial machine
9. FFC wiring harness for liquid crystal display
10. FFC wiring harness for Printer;Scanner;FAX machine;Copier.
