Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
JAE M120-55780 with PHOENIX 1416350
Contact Us

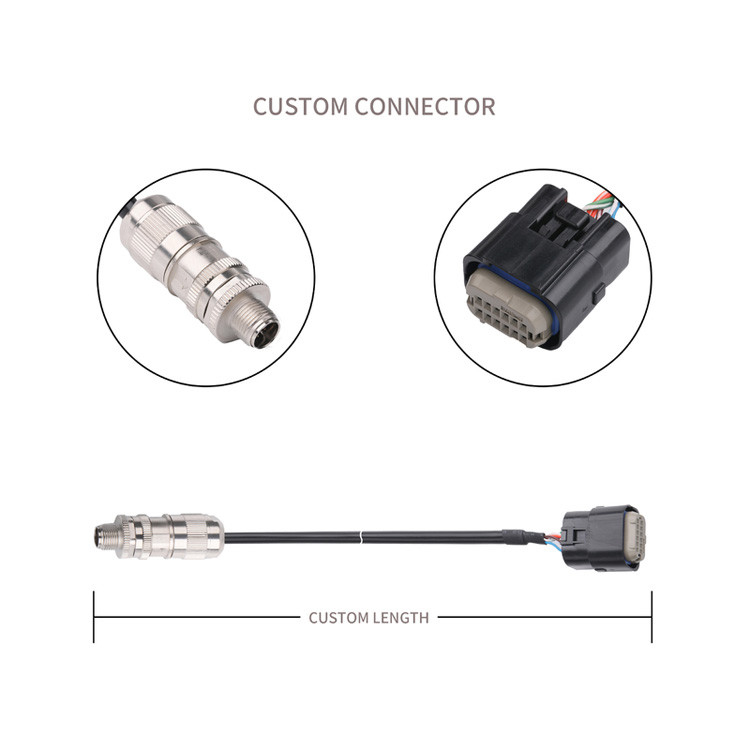

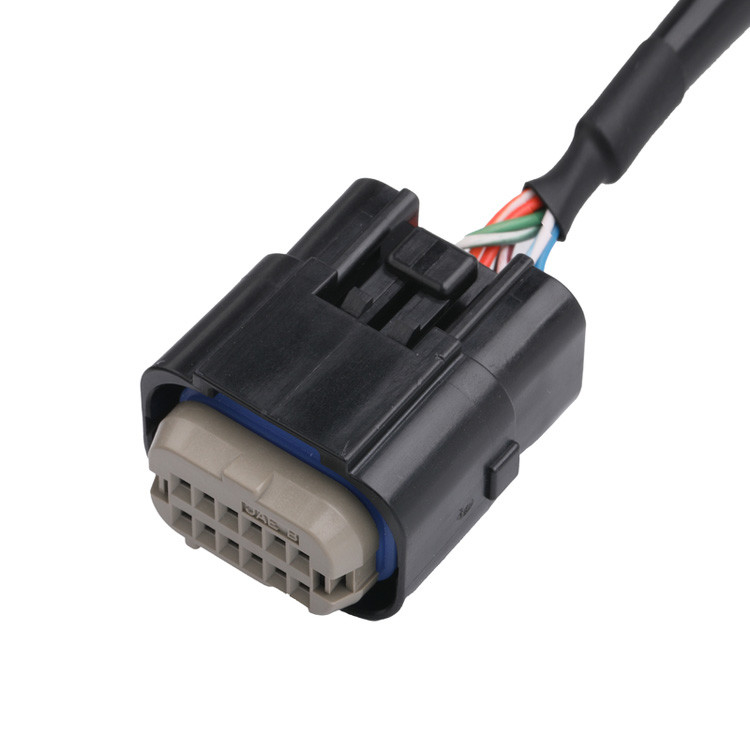

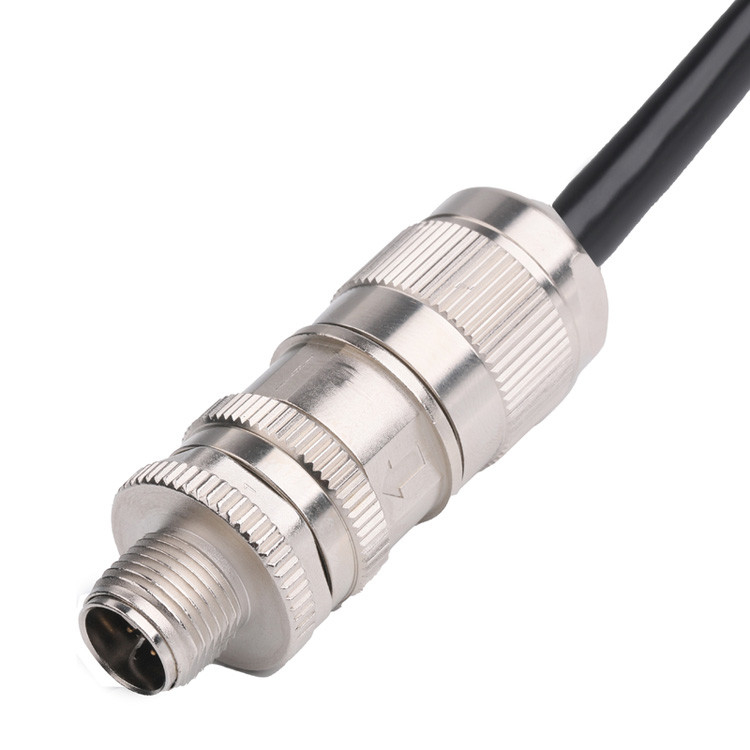

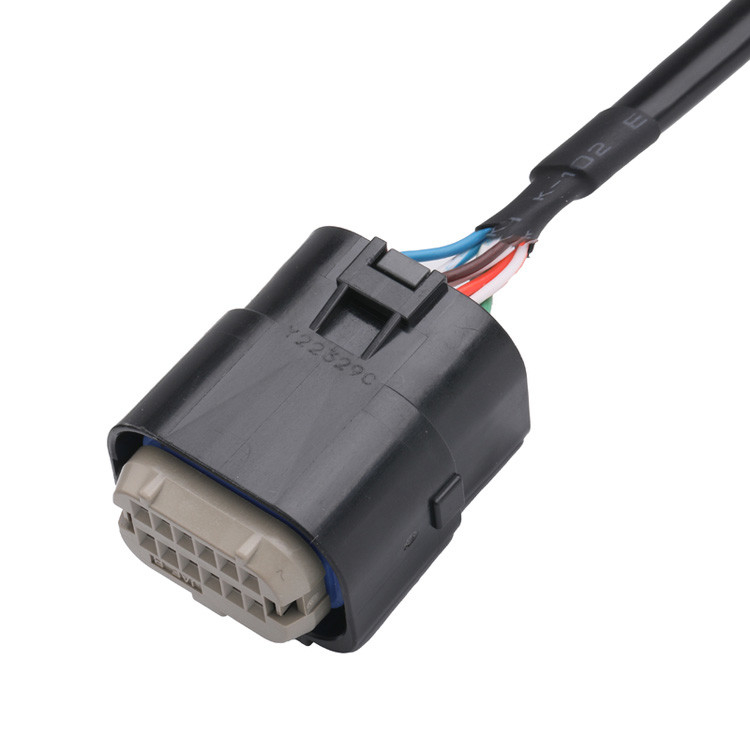

M23S05K351 MX23A12SF1 Phoenix Network Cable Connector
CAT7A 8 Conductor
JAE M120-55780 M23S05K351 MX23A12SF1 with PHOENIX 1416350 NETWORK CABLE CAT7A 8
CONDUCTOR 4-TWISTED PAIRS
Detailed parameter
| Applicable Product Part Numbers | MX23A*SF*,MX47*SF* |
| Dielectric Withstanding Voltage | 500 VACr.m.s. (1 minute) |
| Applicable Cable | crimp type: #16 to23 # AWG (discrete wire), ZIF for FPC type: 1.0 mm pitch FPC/ 0.14 mm thickness, solder type: #16, #20 AWG (fine-wire coaxial) |
| Operating Temperature Range | -40 deg. C to +80 deg. C |
| Waterproof/ Non-waterproof | Waterproof |
APPLICATIONS:
1. INDUSTRIAL AUTOMATION
2. AUTONOMOUS ROBOTICS
3. EMBEDDED VISION
4. INDUSTRIALINTERNET OFTHINGS
5. SMART CITIES,GRIDS & FACTORIES
Widely used in computers, medical equipment, security equipment, security equipment, notebook computers,
HD Cameras, LVDS Cable Assemblies Manufacturer, Smart Home Appliances, Digital Video Cameras, TVs,
Smartphones, Medical Instrumentation, Aircraft Cockpit Instrumentation, Automotive, Electronics, Industrial,
Medical Equipment.
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3. How long can I expect to get the sample?
After you pay for the sample charge and we confirm the drawing with each other, the samples will be ready for 3-5 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
4. Can you do the design for us?
Yes. We have a professional engineer having rich experience in wire harness & cable assembly design. Just let us know your ideas and we will help to carry out your ideas into perfect products. It does not matter if you do not have someone to complete files. Tell us your detalied SPEC. of products, and we will send you finished drawing for confirmation.
5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.
6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
