Place of Origin:
China
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
20373-R10T-06 CONN
Contact Us
Video
Video

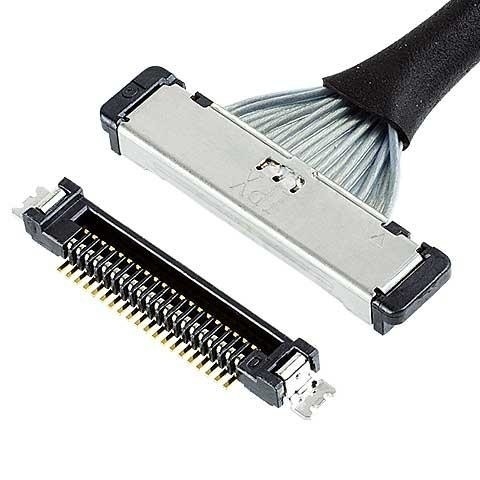

Cabline-Ss 20373-R10T-06 Housing Assembly Micro Coax Connector
| Mating Direction | Vertical |
| Contact pitch | 0.40 mm |
| Height | 1.85 Max (1.65 Nom.) , |
| Depth | 3.00 mm |
| Width Formula | 5.80+(0.4*?p) mm |
| Pin count | 10 14 20 30 32 35 40 50 |
| Micro-Coaxial Cable (AWG) | #38 #40 #42 #44 #46 |
| Discrete Cable | #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.25A AC/DC [AWG #40] per contact/up to 50 contacts 0.30A AC/DC [AWG #40] per contact/up to 32 contacts 0.35A AC/DC [AWG #36] Pper contact/up to 50 contacts 0.40A AC/DC [AWG #36] per contact/up to 37 contacts 0.35A AC/DC [AWG #34] per contact/up to 50 contacts 1.00A AC/DC [AWG #34] per contact/up to 2 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Mechanical lock | No |
| Full shielding (ZenShield®) | No |
| 10 | 20373-R10T-06 |
| 14 | 20373-R14T-06 |
| 20 | 20373-R20T-06 |
| 30 | 20373-R30T-06 |
| 32 | 20373-R32T-06 |
| 35 | 20373-R35T-06 |
| 40 | 20373-R40T-06 |
| 50 | 20373-R50T-06 |
