Place of Origin:
jiangsu
Brand Name:
RY
Certification:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
20241028
Contact Us
Video
Video
| Material / Surface treatment | |
|---|---|
| Insulator materials | LCP (with glass-filled) UL94V-0 material, black |
| contact material | copper alloy |
| contact plating | Gold over Nickel |
| Shell material | copper alloy |
| Shell finish | Nickel plated base, tin-copper-plated finish |
| IDC cover material | [SSL20] LCP (with glass-filled) UL94V-0 material, off-white |
| Performance | |
|---|---|
| current rating | per contact (when using ROUTA) |
| contact resistance | 100 mΩ or less |
| dielectric withstand voltage | AC200V, 1 minute |
| insulation resistance | DC250V, 100MΩ or more |
| operating temperature | -40℃~+85℃ |
| conforming cable | AWG # 32/36 coaxial cable * Please contact us for the cable specifications to be used. |

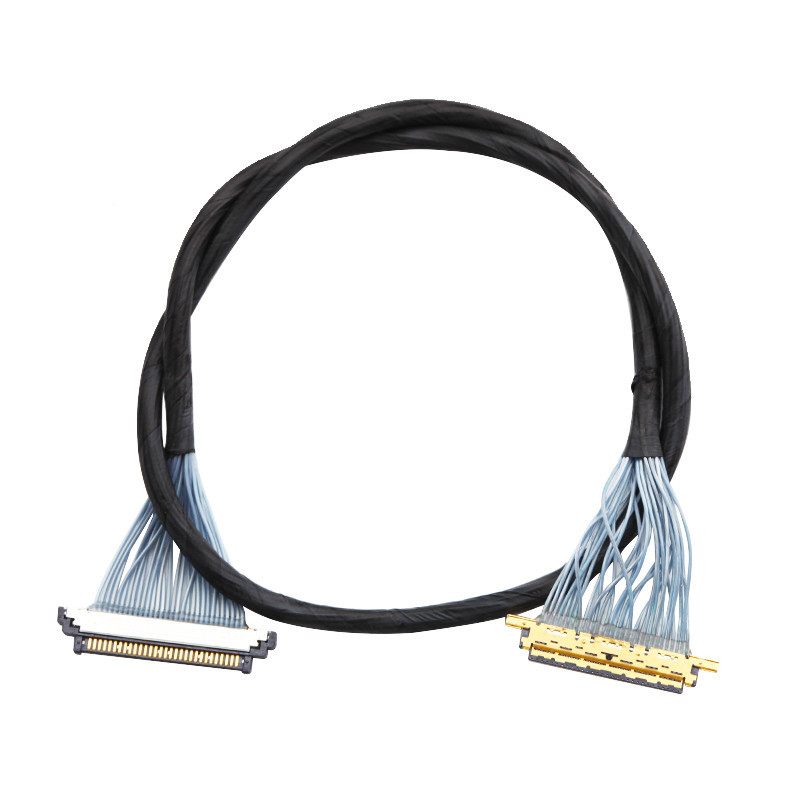

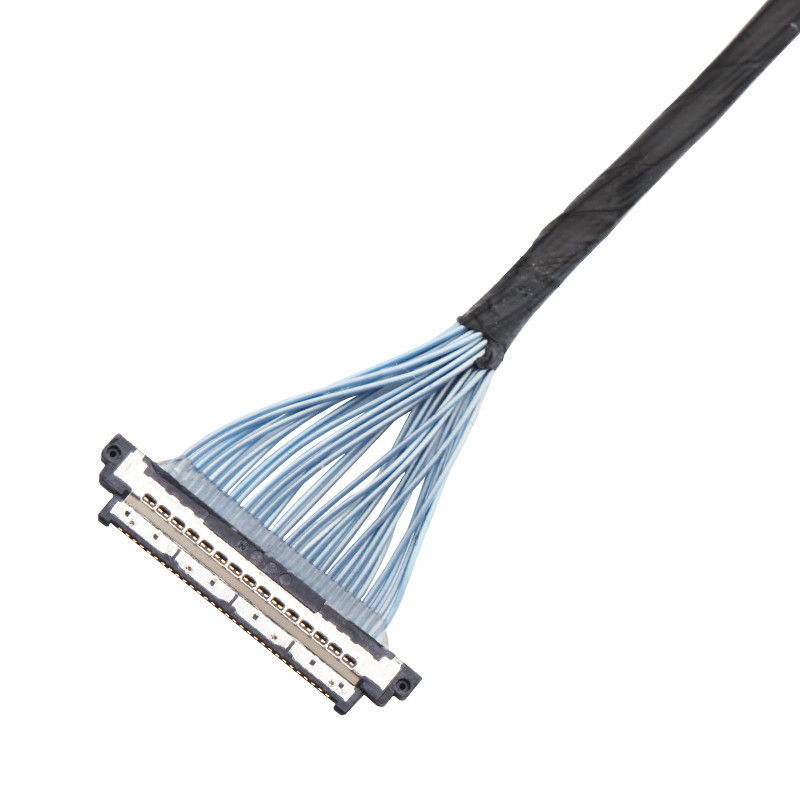

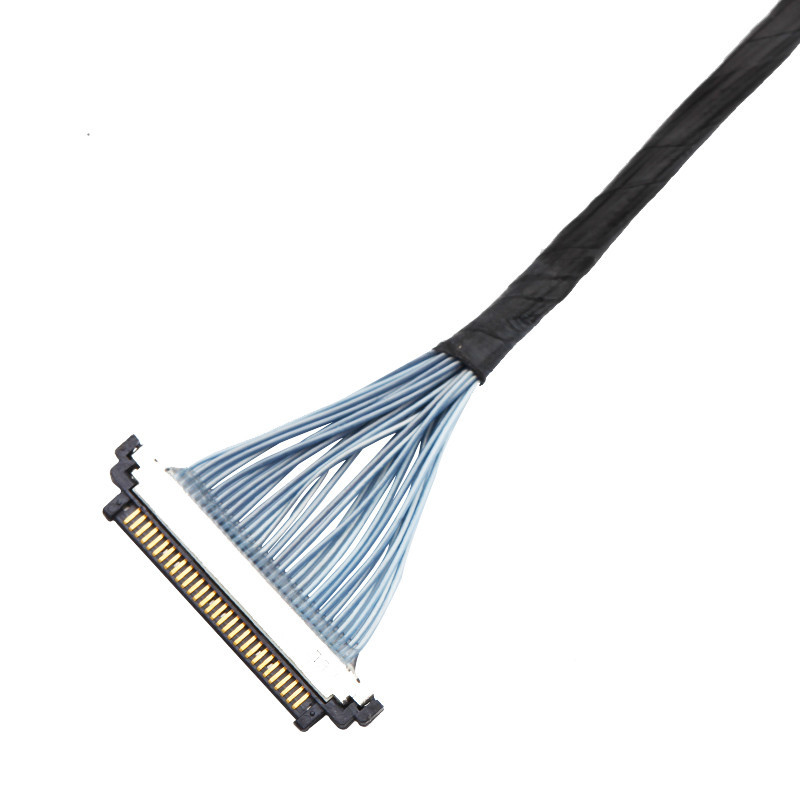

The connectors of this series have a pitch of 0.4 mm and a low mounting height of 1.0 mm.

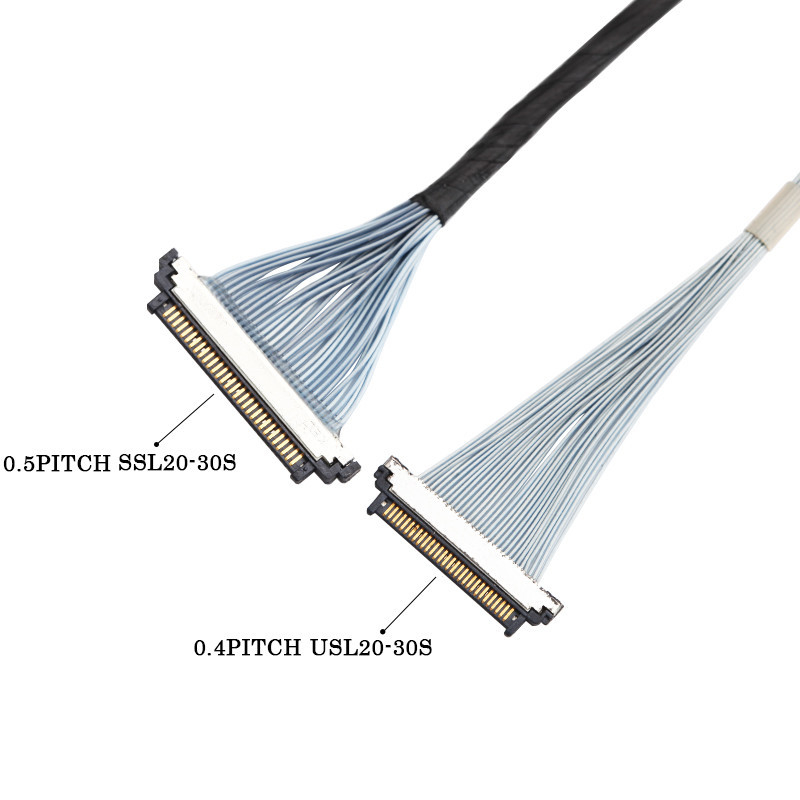

When compared with our current SSL Series of connectors for 0.5-mm pitch, ultra-fine coaxial cables, the
USL Series achieves a major reduction of approximately 50% in terms of coupled volume, thus contributing
greatly to weight reduction and device miniaturization.
This product features a right-angle type connector on the board side and a straight type on the cable side;
furthermore, 30- and 40-contact variations are currently available.
