Place of Origin:
China
Brand Name:
RY
Certification:
CE
Model Number:
Solar special cable
Contact Us

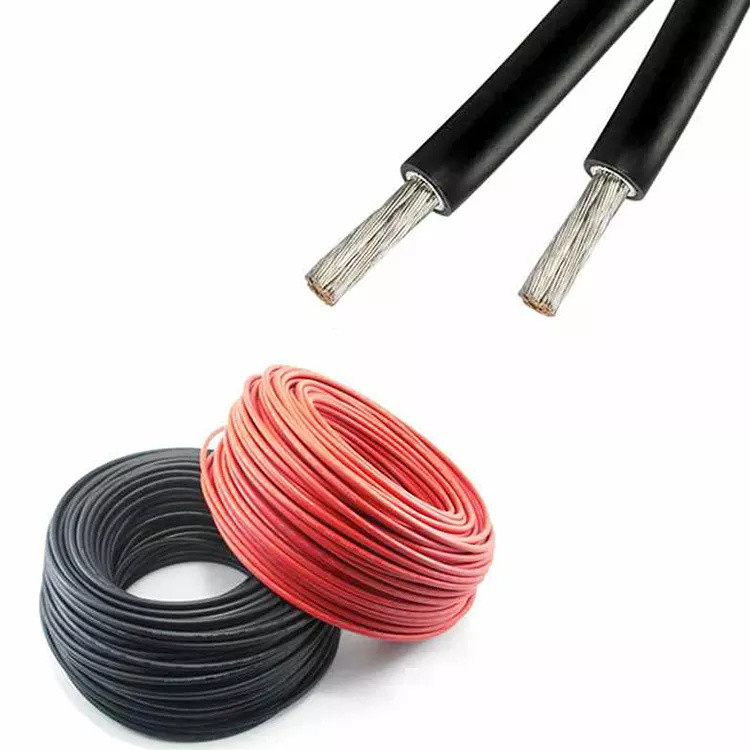

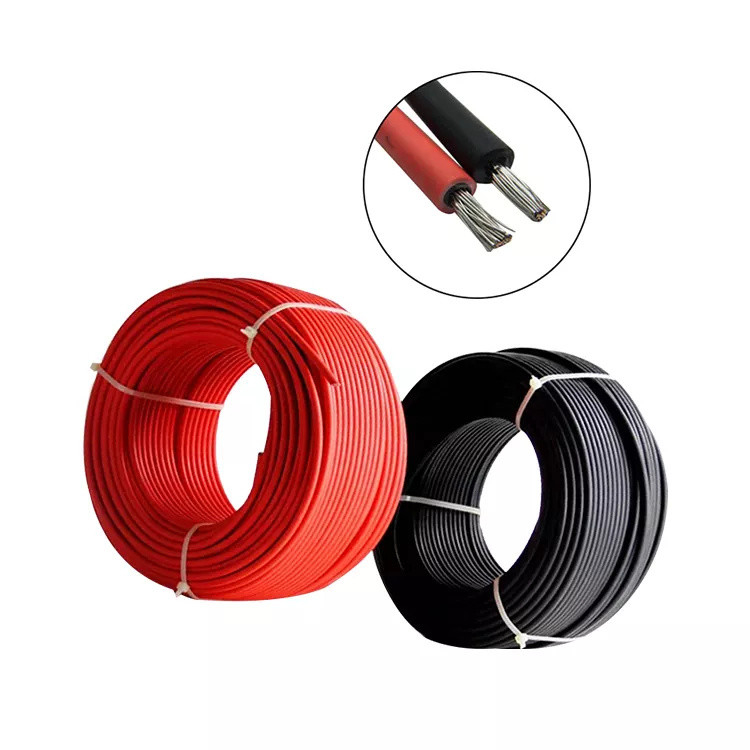

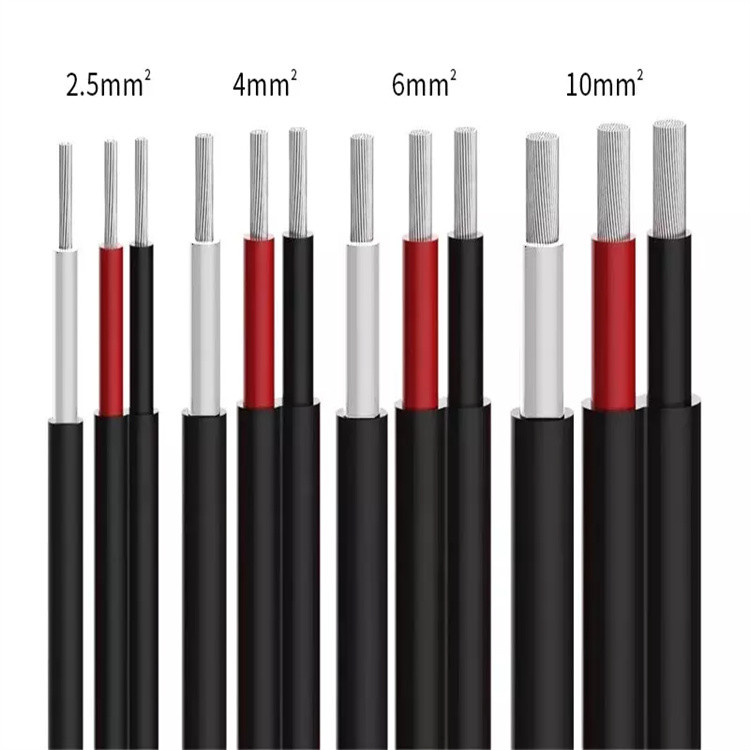

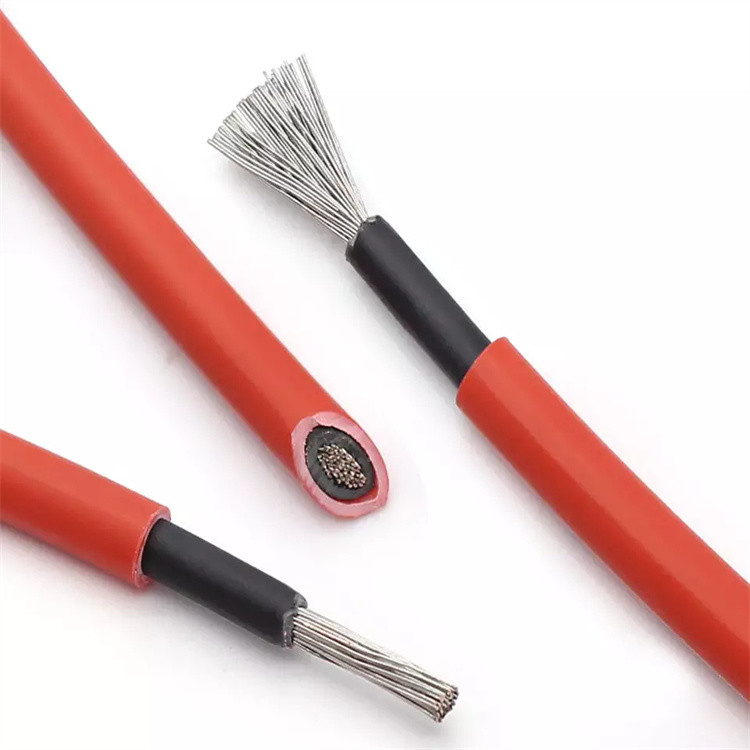

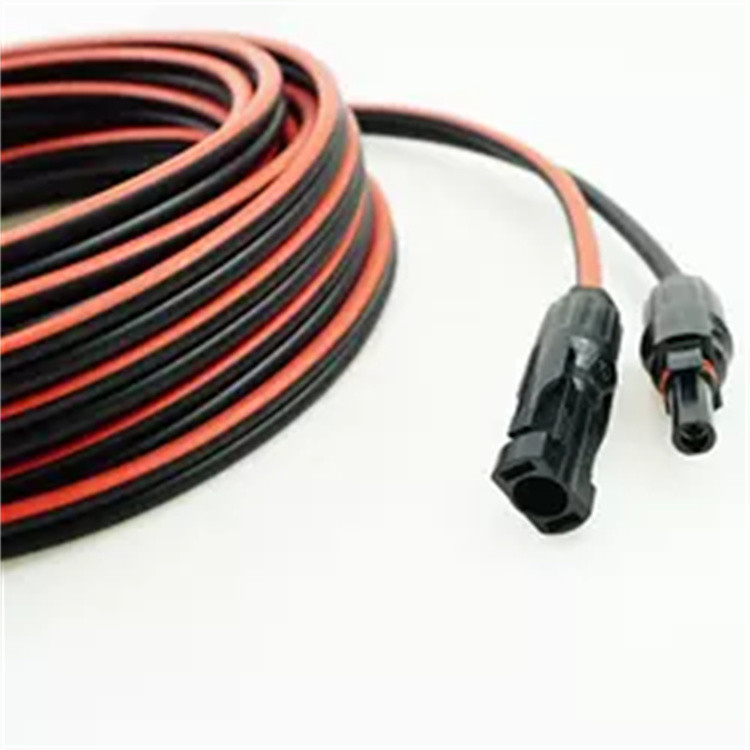

Customized solar cable and wire with DC cable certified by VDE/CCC/REACH/ROHS/CE
Electrical Properties
» Rated Voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
» Maximum Permitted DC Voltage: 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)
» Insulation Resistance: 1000 MΩ-km
» Spark Test: 6000 Vac (8400 Vdc)
» Voltage Withstand: 6500 Vac for 5 min
Thermal Properties
» Maximum Voltage: Ambient Temperature: -40℃ ~ +90℃
» Maximum Temperature At Conductor: 120℃ (20000h) according to IEC/EN 60216-1
» Short Circuit Temperature: 200℃/5 sec
» Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
» High Temperature Pressure Test: According to EN 60811-3-1
» Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity
Mechanical Properties
» Minimum Bending Radius: 4×OD (fixed), 5×OD (flexing)
» Dynamic Penetration: According to 2 PfG 1169/08.2007 Annex F
» Notch Propagation: According to 2 PfG 1169/08.2007 Annex G
» Tensile Strength And Elongation Of Insulation And Jacket: According to EN 60811
» Anticipated Period Of Use: 25 years
Chemical Properties
» Ozone Resistance: According to EN 50396 part 8.1.3 Method B
» Weathering- UV Resistance: According to HD 605/A1
» Ammoniac resistant
» Very good resistance to oils and chemicals
» High wear and robust, abrasion resistant
» Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Fire Performance
|
|
|
|
Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
4. We guarantee every antenna / Cable / Harness we offered must be tested by network analyzer / Precision Low Voltage Wire Tester to ensure the perfect quality before delivery. Cooperated with many overseas clients from over twenty countries, we will be your ideal OEM/ODM partner.
FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you have stock?
We don’t have stock; we’ll start production after receiving PO.
3.What's information do you need for quoting?
For Cable harness, please advise cable specs, part number, or send drawings.
For Connectors, please kindly advise series pins, male or female, molded, field assembly panel mount type and cable length.
4. What's your payment terms?
100 % T/T before delivery
5. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving your payment
3. We'll tell you the tracking number once your order has been sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
