Place of Origin:
china
Brand Name:
RY
Certification:
CE,ROHS
Model Number:
Circular Connector M5 code
Contact Us

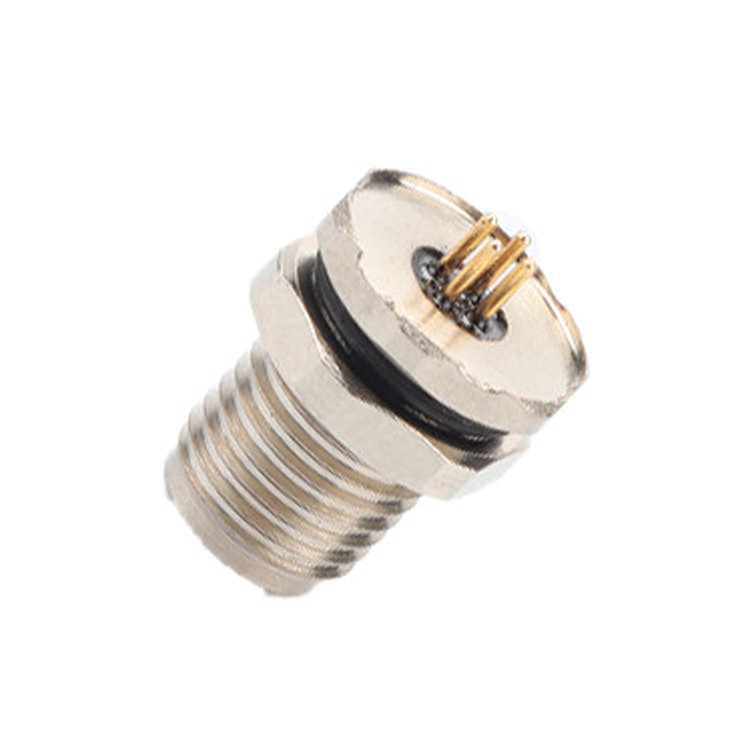

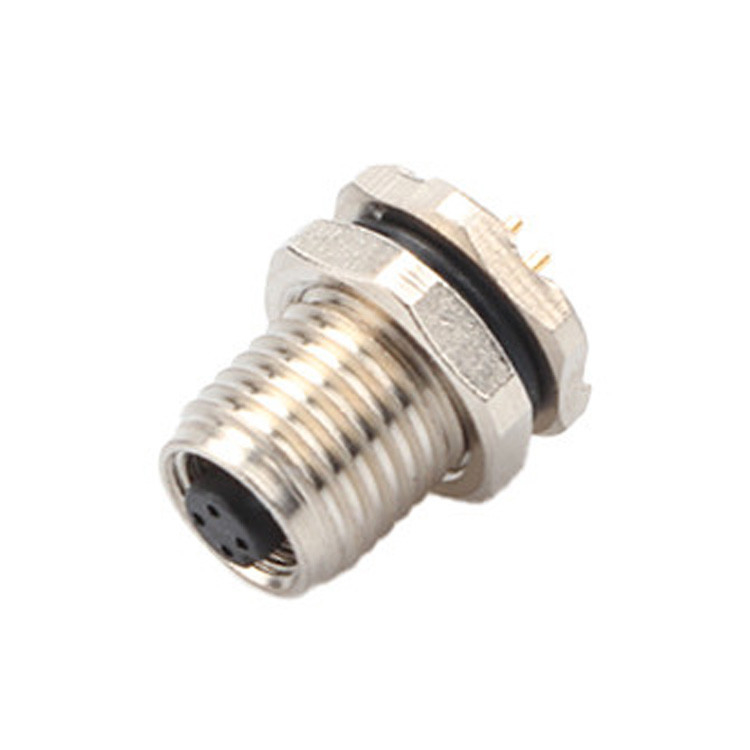

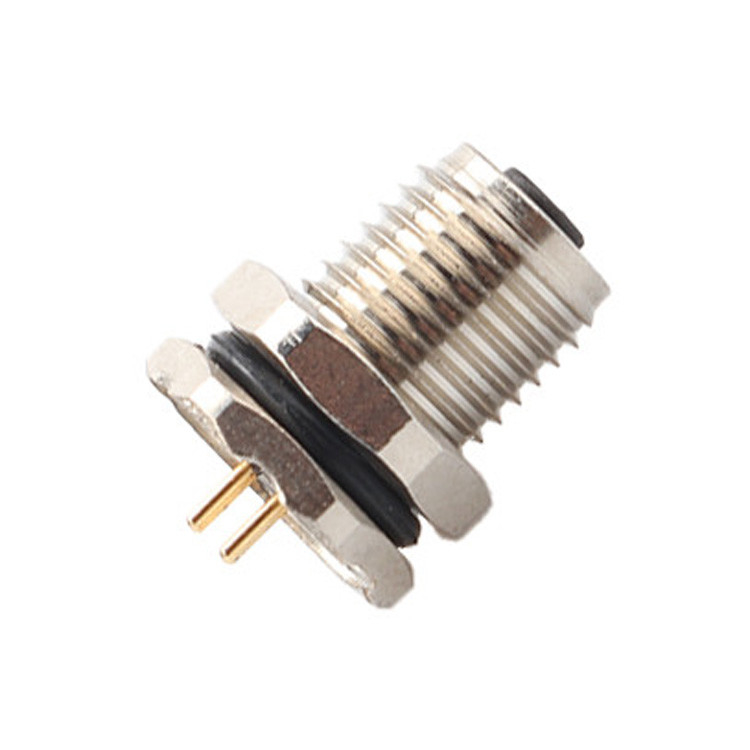

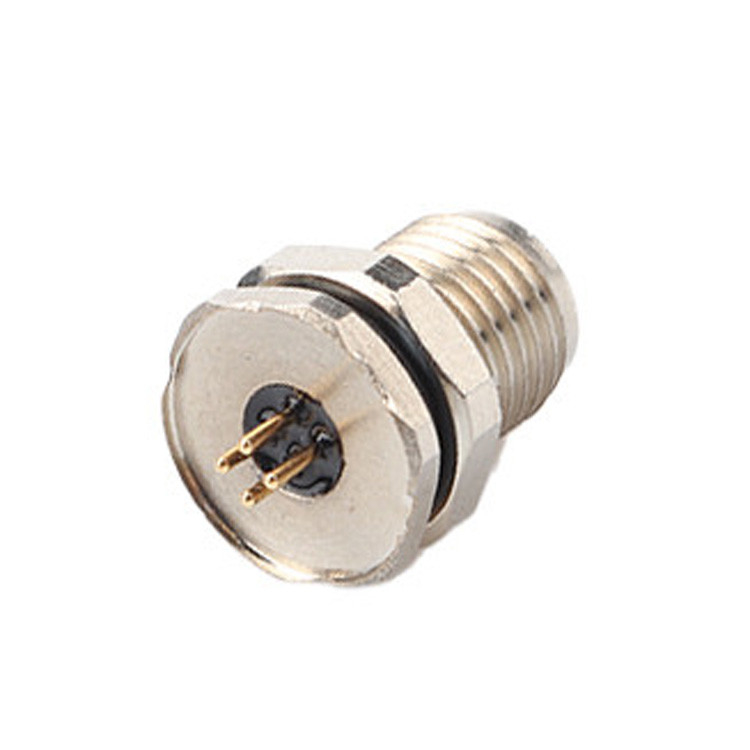

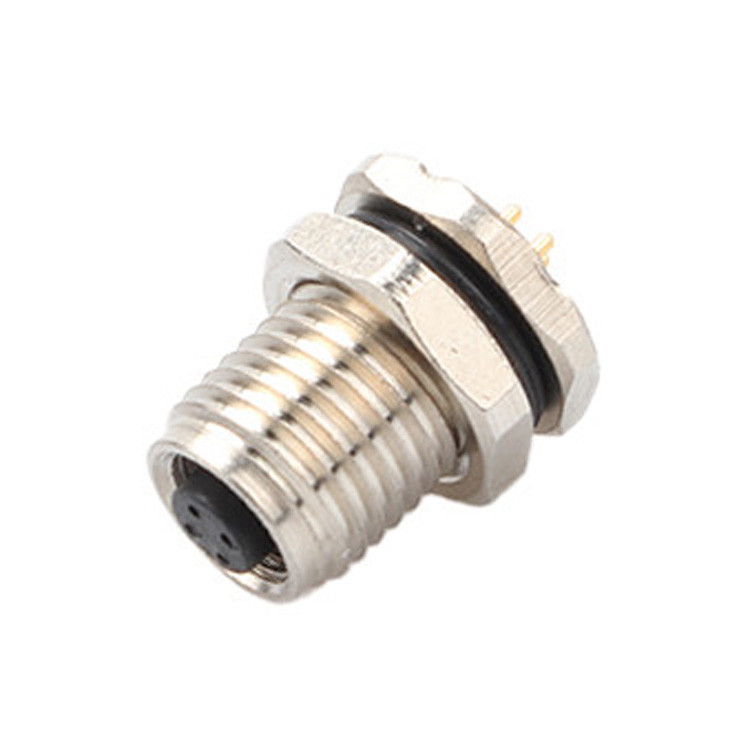

Circular Connector M5 code-A 4Pin Waterproof Series Female Mates
with M5 panel flange PCB male socket
| Feature | Specification |
|---|---|
| Shell Material | Brass with Nickel Plating |
| Seal Material | Epoxy Resin / Rubber |
| Pin Material | Brass with Gold / Nickel Plating |
| Insulator Material | PA (Polyamide) |
| Molding Material | TPU / PVC / PUR |
| Feature | Specification |
|---|---|
| Contact Resistance | ≤5mΩ |
| Mating Cycles | ≥500 Cycles |
| Insulation Resistance | ≥100MΩ |
| Operating Temperature | -25°C to +85°C |
Waterproof (IP67): One of the significant advantages of this connector is its waterproof rating of IP67. This means
that it is dust-tight and can withstand immersion in water up to 1 meter deep for 30 minutes. This feature is crucial
for applications where the connector may be exposed to moisture, rain, or other environmental conditions.
Durability: Industrial connectors are often built to be robust and durable to withstand the challenges of industrial environments.
This could include resistance to vibration, temperature variations, and other factors that might affect performance.
Reliable Connection: Soldered connectors generally provide a secure and reliable electrical connection. This is important in
industrial applications where a stable and uninterrupted electrical connection is critical for the proper functioning of equipment.
Our Company:
RY Electronic Technology Co., Ltd. boasts a decade of expertise in crafting customized cable and connector solutions. Specializing in FFC/FPC cables, flat flexible ribbon cables, LVDS cables, JST Wire Harness and more, we are dedicated to delivering top-tier products tailored to your needs.
With a strong focus on quality assurance, most of our products are certified with UL, CE, ROHS, and ISO9001:2008 standards. We offer flexible Minimum Order Quantities (MOQs) ranging from 5 to 50 units, ensuring accessibility for various requirements. Benefit from swift deliveries within 3 to 15 days, backed by our unwavering commitment to punctuality.
Our company provides and produces various cable assemblies in the fields of drones, AR/VR, AR, VR, etc. micro coaxial cables, radar/navigation, cameras, security monitoring, face recognition payment, etc., and has established cooperative relationships with customers. We have a strong and experienced technical team that can provide you with efficient solutions.
Advantages & Services:
Rigorous quality control and adherence to industry standards.
Low MOQs to accommodate diverse needs.
Swift delivery times with a guarantee of on-time delivery.
Responsive after-sales support and a 1-year warranty.
Extensive OEM/ODM services tailored to your specifications.
Assured product quality, on-time shipments, and payment protection.
