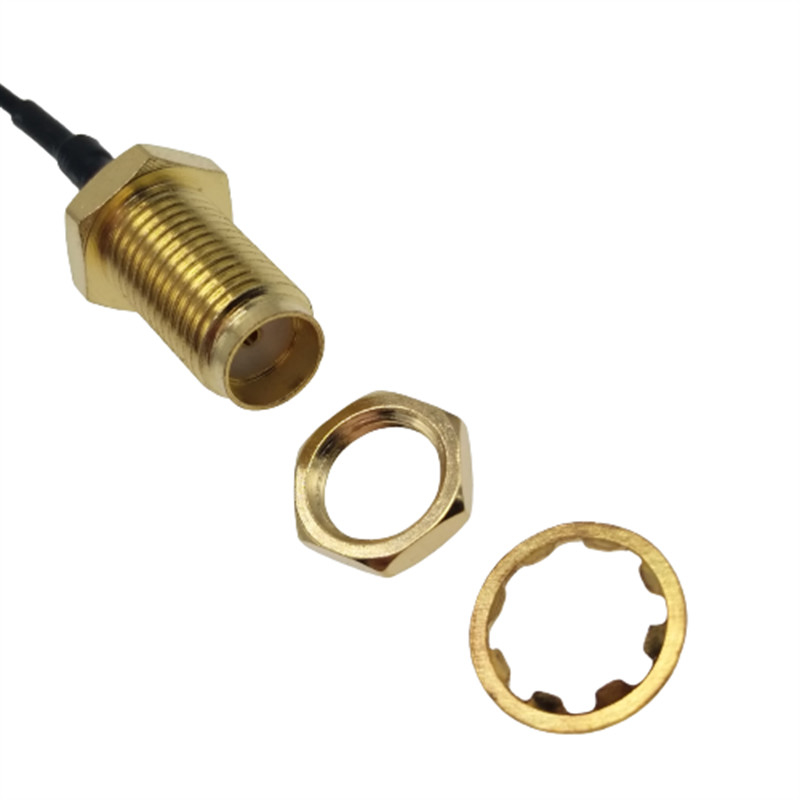

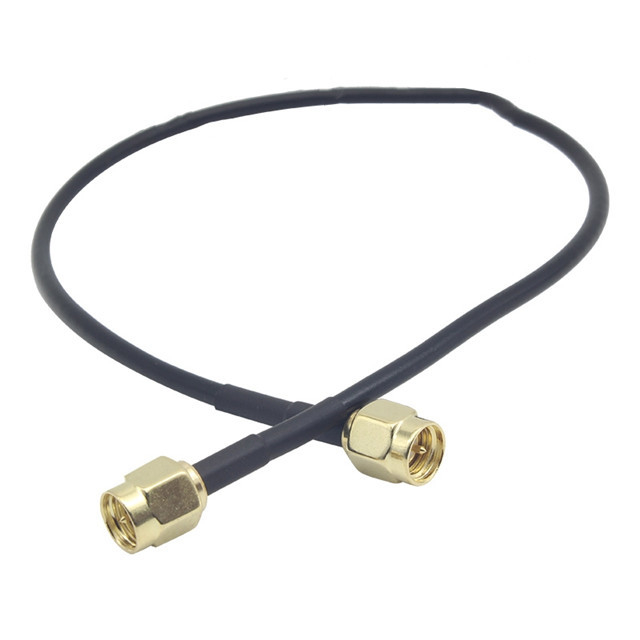

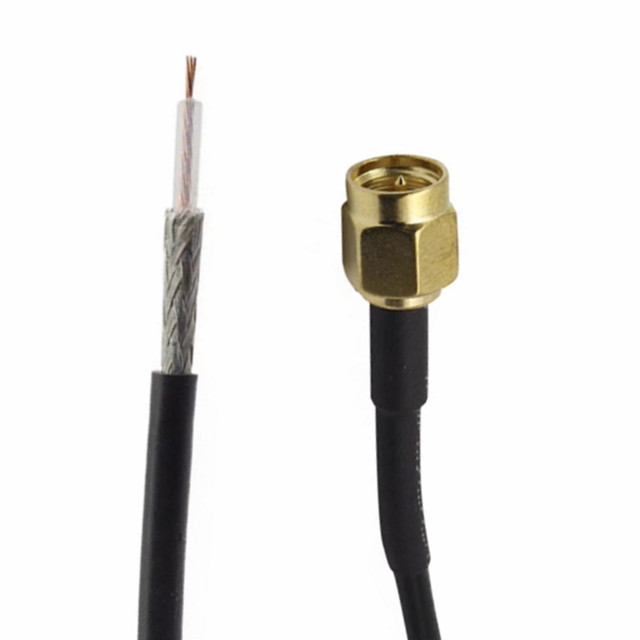

50ohm RG58 Coaxial Cable High End SMA Male To SMA Female Connector Nickel

Why do RF cables come pre-built?

The internal conductor of the whole pre-branch cable has no connector, good electrical continuity; The prefabricated branch joint is manufactured by factory, which greatly reduces the failure points caused by indirect and other human factors in the on-site cable production. The branch joint internal structure is reasonable, the use of advanced production technology in a very short time to complete, to ensure that the branch joint contact resistance is small, not affected by thermal expansion and contraction.

Electrical Characteristics

Product Details:

What kinds of SMA adapters are common? There are three types of interfaces:

1. Thread connection

For example, Sam to 7/16, SMA to N, SMA to TNC, etc. Because of the threaded connection, the plug and socket are more stable, reliable, and have stronger anti-vibration and anti-collision ability.

2. Clamp connection

Such as SMA to BNC. Because of the use of card type connection, easy to use, connection is not easy to loosen, separation is very fast, many medical equipment, electronic instruments are used.

3. Plug in connection

Such as SMA to SMB, SMA to MCX, etc. Its characteristic is that some of them adopt locking structure. Most of them are small in size, light in weight and compact in structure. It is suitable for the instruments and equipments which require the weight and volume of the system. It is also suitable for the installation of drawer type, arrangement type and building block type.

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount



FAQ:

1 Q: Some connectors are available with different cables. Which cables shall I choose?

A: In a nutshell, if there are different cables which can be equipped with the same connector: always choose the cable with the bigger diameter (simply because the bigger diameter results in less attenuation).

2 Q: Can you provide customization?

A: Of course. Personalized designs of RF cable assembly products according to customer's requirements are welcomed.

3 Q: Can you send a sample for us to develop?

A: Yes, normally we can provide 1 or 2 samples of the small RF cable assembly.

4 Q: How much the shipping cost will be for sample ?

A: That depends on the specific weight and packing size of the goods.

5 Q: How can I get the cable price list ?

A: Please contact us with detail inquiry information, so we can offer the latest price for you.

6 Q: What's your MOQ?

A: In generally, we will ask at least 100pcs for the RF cable assembly, which we can make further negotiation.

7 Q: What's the delivery time?

A: Generally, we can deliver the cables in 3-5 working days once the payment is confirmed. Mass production is another matter.

8 Q: How do you solve after sale service?

A: After the receipt of goods, if you are not satisfied or any other problems , please contact us to communicate as soon as possible, we will give you a quickly and reasonable solution .Thanks a lot!
